Trade Name:MFRC63103HNY
Brand:NXP
Particular Year:24+

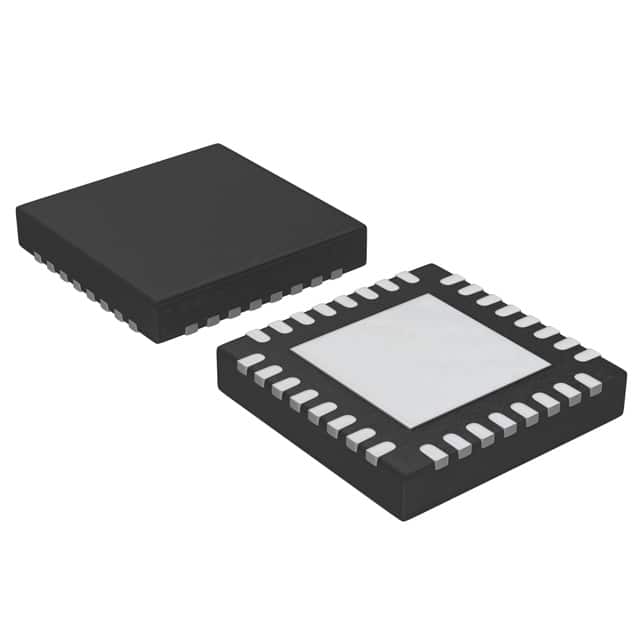

Package:HVQFN-32
Delivery Date:New and original
Stock: 1000pcs
The MFRC63103HNY is a cost-effective NFC payment front-end chip that supports ISO/IEC 14443A/MIFARE and ISO/IEC 14443B modes.
peculiarity
These include NXP ISO/IEC14443-A, Innovatron ISO/IEC14443-B, and NXP MIFARE
Crypto 1 Intellectual property licensing rights
High-performance multi-protocol NFC front end with transmission speeds up to 848 kbit/s
Supports ISO/IEC 14443 A/MIFARE and ISO/IEC 14443 B standards
Hardware MIFARE Classic encryption is supported in read/write mode
Allows reading of MIFARE Ultralight, MIFARE Classic 1K, MIFARE Classic 4K, MIFARE DESFre EV1, MIFARE DESFire EV2, and MIFARE Plus cards
Low power card detection
RF ratings that comply with the "EMV Contactless Protocol Specification V2.3.1" can be achieved
Antenna connections with minimal external components
Supported host interfaces:
The maximum SPI is 10 Mbit/s
I2C bus interface (up to 400 kBd in fast mode, up to 3400 kBd in high-speed mode)
RS232 serial UART up to 1228.8 kBd with voltage level dependent on pin voltage source
Independent I2C bus interface for Security access modules (SAM)
A 512-byte buffer for maximum processing performance
Flexible and efficient power saving modes, including hard shutdown, standby, and low power card detection
Save costs with an integrated PLL that gets the system clock from a 27.12 MHz RF quartz crystal
Power supply voltage: 3 V to 5.5 V
Up to 8 freely programmable input/output pins
The typical operating distance for communication with ISO/IEC 14443A/MIFARE cards in read/write mode is up to 12 cm, depending on antenna size and tuning
