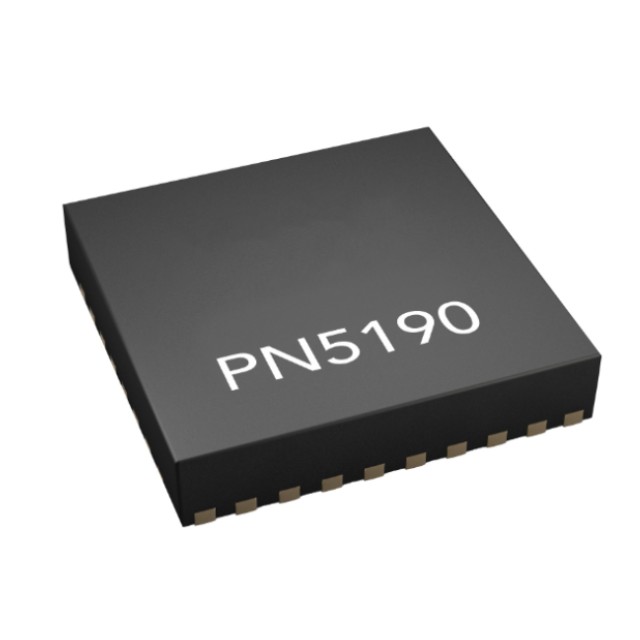

For picture reference, please see the specifications
< >

Commodity Model:PN5190B2HN/C130Y

Trade Name:PN5190B2HN/C130Y

Brand:NXP

Particular Year:24+

Package:VFLGA-40

Delivery Date:New and Original

Stock: 6000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
PN5190B2HN/C130Y
Package
VFLGA-40
Describe
NFC front-end supports challenging RF environments for payments, physical access control

Product Description

As a full NFC front-end with high RF output (2W) and high receiver sensitivity, the PN5190B2HN/C130Y is also a robust solution for payment terminals and all card readers that need to generate a strong RF field in harsh environments.Fully compliant with EMVCO 3.1 and NFC Forum certifications, the PN5190 simplifies design while ensuring interoperability with a a wide range of smart cards and mobile phones.


Higher output power and receiver sensitivity support the design of smaller antennas, maintaining the communication range of larger antennas. This is especially important for designs with large antennas where space is limited. High-efficiency node mode extends battery life in battery-powered systems, including residential access control.


Features

Full-featured transmitter with 2 W of high power: DPC 2.0 (Dynamic Power Control, eliminating the need to handle loads on the host MCU)

Maximum transmitter power with a single 3.3 V power supply

Connects 1 differential antenna or 2 single-ended antennas

Provides a powerful receiver: auto-configurable with advanced insensitivity to TFT display noise for higher RF performance

Acts as a full NFC front-end with active load modulation in card mode for long-range operation

All relevant RF protocols implemented

NXP proprietary high data rates up to 212 kbit for NTAG5 communication

Provides ultra-low power card detection with low average current consumption

Flexible configuration of EMD processing (EMVCo 3.1, ISO, FeliCa) for future system integration

Provides automatic antenna tuning (AAT) with variable capacitors

RF debugging without external probe test signals, an ideal debugging solution for PCI-compliant POS terminals

Advanced RF debugging using AUX0, AUX1, AUX2 outputs

EMVCo 3.1 and NFC Forum certified


Applications

Smart Cities

POS terminals

Citizen ID (eID)

Open and closed loop payments

Access Control
