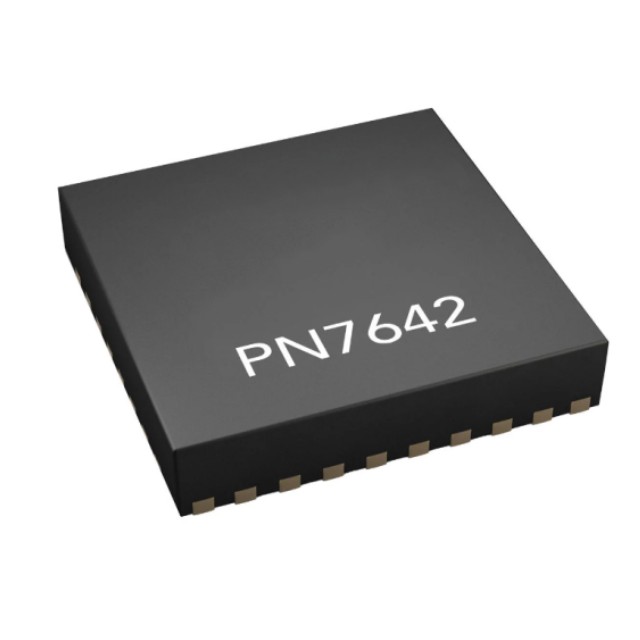

For picture reference, please see the specifications
< >

Commodity Model:PN7642EV/C101K

Trade Name:PN7642EV/C101K

Brand:NXP

Particular Year:24+

Package:VFBGA-64

Delivery Date:New and Original

Stock: 2450pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
PN7642EV/C101K
Package
VFBGA-64
Describe
Single-chip solution with high-performance NFC reader, customisable MCU and security toolkit

Product Description

The PN7642EV/C101K single-chip NFC solution includes a high-performance NFC reader, customisable MCU and security toolkit. The low-power Arm® Cortex M33 features 180kB of programmable Flash memory, SESIP-certified security system optimised for encryption and security key memory.


The PN7642 single-chip solution features a rich set of controller and host interfaces, as well as a full range of product support packages to support rapid design integration.


The PN7642 single-chip NFC solution is available in a compact VFBGA64 package, ideal for space-constrained applications.


Key Features

  • ARMCortexM-33neihe: 90MHz, 20kB user RAM, 180kB user Flash.

  • Supports read/write and card emulation modes, NFCForum-compliant NFC reader.

  • R/W mode: ISO/IEC14443A-B and legacy B', FeliCa™, ISO15693, ISO18000EPC-HF. complete MIFARE®, DESFire®, NTAG® (NTAG5 to 212kbit/s), ICODE® and SmartMX® families

  • CE mode: ISO/IEC14443-4A with ALM/PLM up to 848kbps

  • High output power of 2W: Maximum operating transmitter current of 350MA with Dynamic Power Control (DPC2.0) and Automatic Waveform Control (AWC)

  • Integrated DC/DC support for single 3.3V supply with maximum transmit power

  • Ultra-low power card detection (22µA type)

  • Supports ECP 2.0 (Apple Enhanced Contactless Polling)

  • Hardware acceleration of symmetric and asymmetric algorithms

  • Secure keystore with up to 13 128-bit symmetric keys (or 6 256-bit keys)

  • Software protection against bypass attacks

  • 2.4 to 5.5V power supply

  • Rich interfaces

  • SPI (up to 15 Mbit/s) and I²C (up to 3.4 Mbit/s) controllers

  • I²C, I³C (up to 3.4 Mbit/s) and SPI targets

  • Up to 21 general-purpose IOs

  • USB device and HSUART

  • 3 PWM interfaces, ADC (10b) (no DPC configuration)

  • ISO-AUX interface to TDAs

  • 4 GP32b timers, 1 WD timer, SWD interface

  • Extensive support tools, including integration into MCUXpressoIDE/SDK

  • Firmware updates from host interface, NFC and user applications

  • Extended operating temperature range: -40 to +105°C

  • GlobalPlatform certified SESIPL2

  • VFBGA64 package (4.5x4.5x0.8mm)
