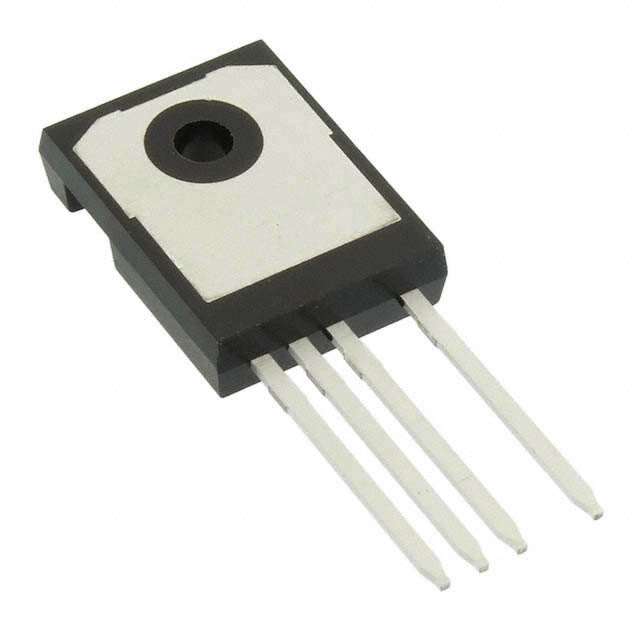

IKY50N120CH3 Hard Switches 1200 V, 50 A High Speed 3 H3 in TO-247PLUS 4-Pin Package Key features of the TO-247PLUS package include higher current capability, better thermal performance, and longer C-E creepage distances The 4-pin package configuration provides ultra-low inductance for the gate-emitter control loop, and the 4-pin package connects directly to the gate driver, reducing total switching losses E ts by 20%. The 4-pin package configuration provides ultra-low inductance for the gate-emitter control loop, and the 4-pin package connects directly to the gate driver, reducing E on and E off losses, resulting in a 20% reduction in total switching loss E ts.

Product Characteristics

Voltage - Collector Breakdown (max): 1200 В

Current - Collector (Ic) (max): 100 A 100 A

Current - collector pulse (Icm): 200 A

Vce (On), Ic (max) at different Vge: 2.35 V at 15 V, 50 A

Power - Max: 652 W

Switching energy: 2.3 mJ (on), 1.9 mJ (off)

Input Type: Standard

Gate charge 235 nK

Td value at 25°C (on/off): 32ns/296ns

Test Conditions 600 V, 50 A, 10 ohms, 15 V

Reverse Recovery Time (trr): 255 ns

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Through Hole

Package/Housing: TO-247-4

Supplier Device Package: PG-TO247-4

APPLICATIONS

● Electric vehicle charging

● Photovoltaics

● Uninterruptible power supply (UPS)
