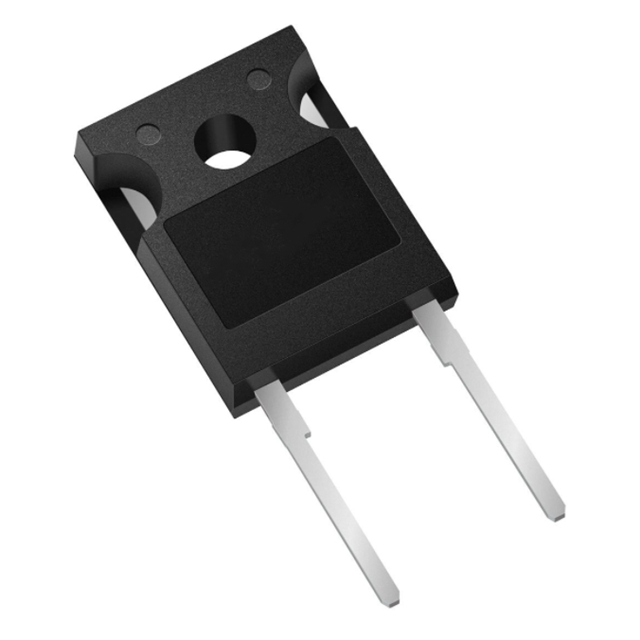

The NDSH40120C-F155 1200V Silicon Carbide (SiC) Schottky diode is available in a TO-247-2L package, providing superior switching performance and increased reliability. The device's lack of reverse recovery current, temperature-independent switching characteristics and excellent thermal performance make silicon carbide the next generation of power semiconductors. System benefits include highest efficiency, faster operating frequency, higher power density, lower EMI, and lower system size and cost.

Product attribute

Technology: SiC (silicon carbide) Schottky

Voltage - DC reverse (Vr) (Max) : 1200 V

Current - Average rectification (Io) : 46A

Voltage under different If - forward (Vf) : 1.75 V @ 40 A

Speed: None Recovery time > 500mA (Io)

Reverse recovery time (trr) : 0 ns

Current - reverse leakage at different Vr: 200µA @ 1.2kV

Capacitance in different Vr and F: 2840pF@1V, 100kHz

Grade: -

Qualification: -

Installation type: Through hole

Package/housing: TO-247-2

Supplier device package: TO-247-2

Operating temperature - junction: -55°C ~ 175°C
