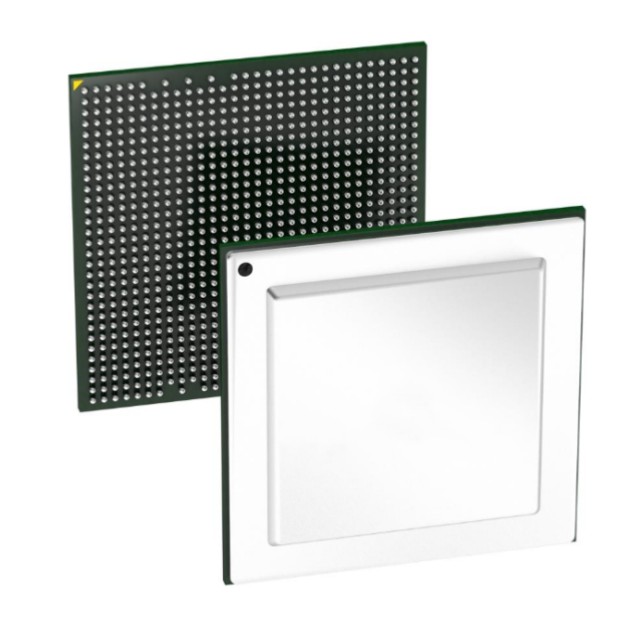

VSC7558-V/5CC provides a rich set of Enterprise switching features such as advanced TCAM-based VLAN and QoS processing enabling delivery of differentiated services, and security through TCAMbased frame processing using versatile content aware processor.

Features

IEEE®802.1Q switch with 4K VLANs and 32K MAC table entries

Push/pop/translate up to three VLAN tags on ingress and egress

RSTP and MSTP support

Fully nonblocking wire-speed switching performance for all frame sizes

Link aggregation and DRNI per IEEE 802.1AX

External bridge port extender role per IEEE 802.1BR

IPv4/IPv6 unicast and multicast Layer 2 switching with up to 32K groups and 2K port masks

IPv4/IPv6 unicast and multicast Layer 3 forwarding (routing) with reverse path forwarding (RPF) support

IGMPv2, IGMPv3, MLDv1, and MLDv2 support

IPv4 tunnels including GRE, 6to4, 6rd, 6over4, ISATAP, and 6in4

Energy Efficient Ethernet (EEE) (IEEE 802.3az)

Four megabytes of integrated shared packet memory

Two megabytes of integrated shared packet memory

Eight QoS classes with a pool of up to 32K queues

TCAM-based classification with pattern matching against Layer 2 through Layer 4 information

Dual-rate policers selected by VCAP IS2, eight dual-rate priority policers per port, and four single-rate port policers for each port

Flexible 4K ingress QoS mappings and 8K egress QoS mappings for VLAN tags and DSCP values

4K egress VLAN tag operations

Low latency cut-through forwarding mode– Priority-based flow control (PFC) (IEEE 802.1Qbb)
