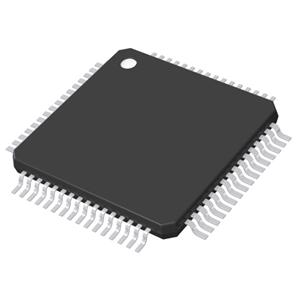

DSPIC33CK256MP506-E/PT (TQFP64): 16-bit dsPIC™ 33CK Digital Signal Controller (DSC)

DSPIC33CK256MP506-E/PT Product Attributes:

Core Processor: dsPIC

Core Specification: 16-bit

Speed: 100MHz

Connectivity: CANbus, I2C, IrDA, LINbus, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, DMA, Motor Control PWM, POR, PWM. QEI, WDT

Number of I/O: 53

Program Memory Capacity: 256KB (256K x 8)

Program Memory Type: Flash

RAM Size: 24K x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 20x12b; D/A 3x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Vendor Device Package: 64-TQFP (10x10)

Package/Case: 64-TQFP

DSPIC33CK256MP506-E/PT Product Features:

Operating Conditions

3.0V to 3.6V

-40ºC to +125ºC, DC to 100 MHz

-40ºC to +150ºC, DC to 70 MHz

dsPIC33CK DSC core

Up to 256 KB bytes of program flash with ECC and real-time updates (dual partition flash)

Up to 24 KB bytes of data SRAM with Memory Built-In Self-Test (MBIST)

Modified Harvard Architecture with 16-bit data and 24-bit instructions

Code-efficient (C and assembly) CPU architecture designed for real-time applications

16x 16-bit working registers

4 sets of interrupt context-saving registers including ACC and CPU status registers for fast interrupt handling

Single-cycle mixed-symbol 32-bit MUL

Fast 6-cycle hardware 32/16 and 16/16 DIV

Dual 40-bit fixed-point accumulators (ACC) for DSP operation Accumulator with Constant Count (ACC)

Single-Cycle MAC/MPY with Dual Data Acquisition and Write Back Results
