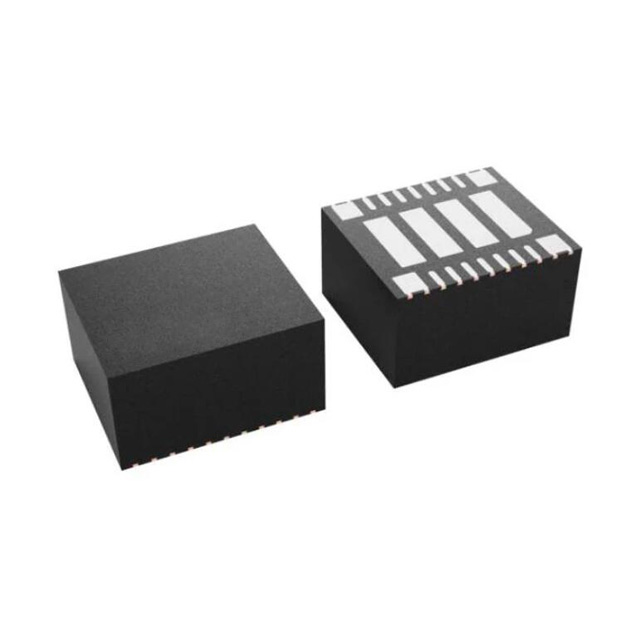

For picture reference, please see the specifications
< >

Commodity Model:TLVM13610RDFR

Trade Name:TLVM13610RDFR

Data Manual:TLVM13610RDFR.pdf

Brand:TI

Particular Year:23+

Package:22-B3QFN

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
TLVM13610RDFR
Package
22-B3QFN
Describe
Non-Isolated PoL Module DC DC Converter 1 Output 1 ~ 10V 8A 3V - 36V Input

Product Description

TLVM13610RDFR - High-Density, 3V to 36V Input, 1V to 10V Output, 8A (10A Peak) Synchronous Buck DC/DC Power Module with Enhanced HotRod™ QFN Packag


Product Description

TLVM13610RDFR is a highly integrated 36V, 8A DC/DC solution that combines power MOSFETs, a shielded inductor, and passives in an Enhanced HotRod™ QFN package. The module has VIN and VOUT pins located at the corners of the package for optimized input and output capacitor placement. Four larger thermal pads beneath the module enable a simple layout and easy handling in manufacturing.


Product Features

Versatile 36-VIN, 8-AOUT synchronous buck module

– Integrated MOSFETs, inductor, and controller

– Adjustable output voltage from 1 V to 10 V

– 6.5-mm × 7.5-mm × 4-mm overmolded package

– –40°C to 125°C junction temperature range

– Frequency adjustable from 200 kHz to 2.2 MHz

Ultra-high efficiency across the full load range

– 95%+ peak efficiency

– External bias option for improved efficiency

– Exposed Pad for low thermal impedance. EVM θ JA = 18.2 °C/W.

– Shutdown quiescent current of 0.6 µA (typical)


Applications

Test and measurement, aerospace and defense

Factory automation and control

Buck and inverting buck-boost power supplies


Associated Products

Model

Brand

Package

Quantity

Describe

TPSM8S6B24MOYR

TI

45-QFM

2000

Non-isolated PoL module DC converter 1 Outputs 0.5 to 5.5V 25A 2.95V to 16V input

ADUM6028-5WBRIZ

ADI

8-SOIC

1000

Isolation Module DC Converter 1 Output 5V 60mA 4.5V - 5.5V Input

LTM4712IY

ADI

BGA-144

2000

Non-Isolated PoL Module DC DC Converter 1 Output 1 ~ 36V 12A 1V - 36V Input

TPSM33615RDNR

TI

11-QFN-FCMOD

2000

Non-Isolated PoL Module DC DC Converter 1 Output 1 ~ 15V 1.5A 3V - 36V Input

TPSM33615FRDNR

TI

11-QFN-FCMOD

2000

Non-Isolated PoL Module DC DC Converter 1 Output 1 ~ 15V 1.5A 3V - 36V Input

TPSM863257RDXR

TI

QFN-FCMOD-7

1000

Non-Isolated PoL Module DC Converter 1 Output 0.6 ~ 5.5V 3A 3V - 17V Input

TPSM8S6C24MOYR

TI

45-QFM

1000

Non-Isolated PoL Module DC Converter 1 Output 0.5 ~ 3.6V 35A 2.95V - 16V Input

TPS552872QWRYQRQ1

TI

VQFN-21

1000

Buck-Boost Switching Regulator IC Positive Adjustable 0.8V 1 Output 4A 21-PowerVFQFN

TPSM5601R5SRDAR

TI

15-B3QFN

1000

Non-Isolated PoL Module DC Converter 1 Output 1 ~ 6V 1.5A 4.2V - 60V Input

TPSM265R1SILR

TI

USIP-10

1000

Non-Isolated PoL Module DC Converter 1 Output 1.233 ~ 15V 100mA 3V - 65V Input
