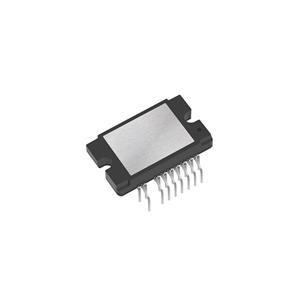

The NFAQ1060L36T is a fully integrated inverter power stage consisting of a high-voltage driver, six IGBTs, and a thermistor for driving permanent magnet synchronous motors (PMSMs), brushless DC (BLDC) motors, and thermistor, AC asynchronous motors. the IGBTs are configured as three-phase bridges with independent emitter connections on the lower legs for maximum flexibility. The power stage has a full range of protection function features, including transconductance protection, external shutdown and undervoltage lockout. An internal comparator and reference are connected to the overcurrent protection circuitry, enabling the designer to set the overcurrent protection level.

Functions

● Three-phase 10 A / 600 V IGBT module with integrated driver

● Compact 29.6 mm x 18.2 mm dual in-line package

● Built-in undervoltage protection

● Transconductance protection

● ITRIP input to switch off all IGBTs

● Integrated bootstrap diodes and resistors

● Thermistor for substrate temperature measurement

● Shutdown pin

● UL1557 certification (File No. E339285)

Applications

● Industrial pumps

● Industrial fans

● Industrial automation

● Household appliances
