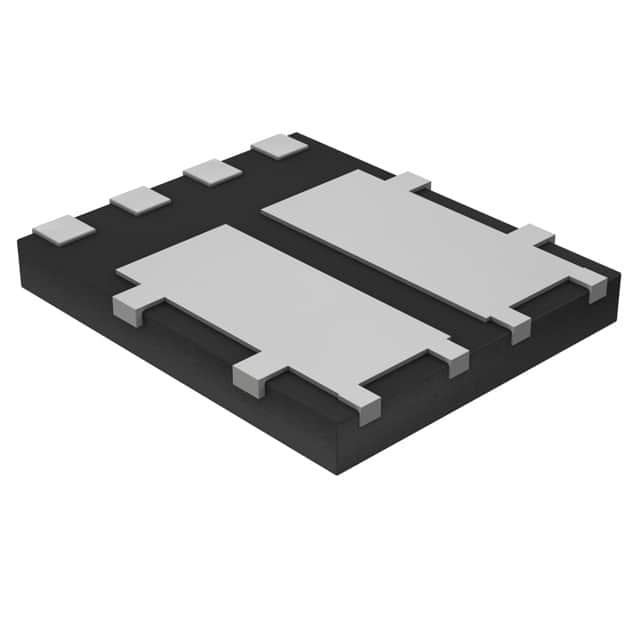

The NVMFD6H846NLT1G is an automotive 80V, 31A power MOSFET in a 5x6mm flat lead package designed for compact and efficient design with high thermal performance. Wettable side options can be used to enhance optical inspection.

Product attribute

Technology: MOSFET (Metal oxide)

Configuration: 2 N-channels (dual)

FET function: -

Drain-source voltage (Vdss) : 80V

Current at 25°C - Continuous drain (Id) : 9,4 A (Ta), 31A (Tc)

On-resistance (Max.) at different ids and Vgs: 15 milliohm @ 5A, 10V

Vgs(th) (Max.) for different ids: 2V@21µA

Gate charge (Qg) at different Vgs (Max) : 17N@10V

Input capacitance (Ciss) for different Vds (Max.) : 900PF-40V

Power - Max: 3,2 W (Ta), 34W (Tc)

Operating temperature: -55°C ~ 175°C (TJ)

Class: Automobile class

Qualification: AEC-Q101

Mounting type: Surface mount type

Package/housing: 8-PowerTDFN

Supplier Package: 8-DFN (5x6) Dual tag (SO8FL- Dual channel)

Basic product number: NVMFD6
