The LTC1968IMS8 is a true RMS to DC converter that uses an innovative delta-integral computation technique. The advantages of the proprietary architecture include higher linearity and accuracy, amplitude-independent bandwidth, and better temperature characteristics than traditional log-antilog RMS-to-DC converters. Works with single-ended or differential input signals and accurately supports crest factors up to 4. Differential input range of 1VPEAK with unprecedented linearity. Allows trouble-free system calibration at any input voltage.

Characteristics

● High linearity: 0.02% linearity allows for simple system calibration

● Bandwidth to 1% additional gain error: 500kHz

● Bandwidth to 0.1% additional gain error: 150kHz

● 3dB bandwidth independent of input voltage

● True RMS-DC conversion with a single external capacitor

● Delta Sigma conversion technology

● Ultra-low shutdown current: 0.1µA

● Flexible inputs: differential or single-ended

● Rail-to-rail common-mode voltage range

● Up to 1VPEAK differential voltage

● Flexible outputs: rail-to-rail outputs

● Separate output reference pins allow level shifting

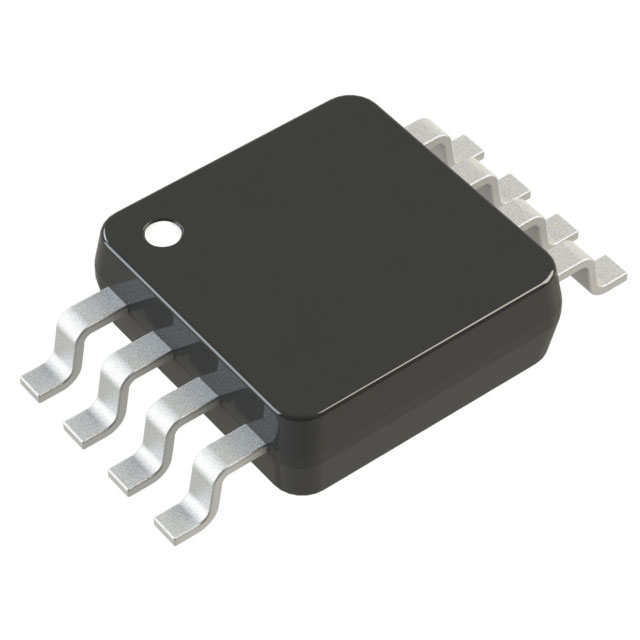

● Small size: space-saving 8-pin MSOP package

Applications

● True RMS digital multimeters and panel meters

● True RMS AC + DC measurements
