The AD8436BRQZ is a new generation of precision transwire, low power, true RNS-to-DC converters that can be loaded with multiple options. It can accurately calculate the DC equivalent of the RMS value of an AC waveform, including complex modes powered by a switching mode power supply and controlled by a three-terminal bidirectional thyristor. It provides high precision conversion over a wide range of input levels (see Figure 2) and temperatures. New ADI technology ensures accuracy of ≤±0.5% and output offset of ≤10 μV. When the CF value is between 1 and 10, the crest factor error is less than 0.5%.

The AD8436 delivers true RMS results at a lower cost than misleading peak, mean or digital solutions. With a matching pair of internal resistors, it is easy to achieve gain configurations of 2 or higher, and the available input range can be extended to lower levels. The AD8436 features low-power precision input buffering, making it ideal for portable multimeters and other battery-powered applications.

specification

Current - Power supply: 325 µA

Voltage - power supply: ±2.4V ~ 18V, 4.8V ~ 36V

Mounting type: Surface mount type

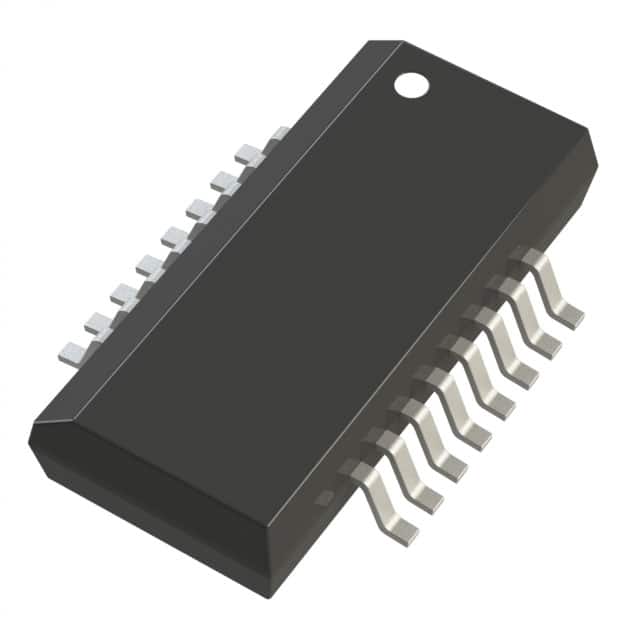

Package/housing: 20-SSOP (0.154", 3.90mm wide)

Supplier device package: 20-QSOP

Basic product number: AD8436
