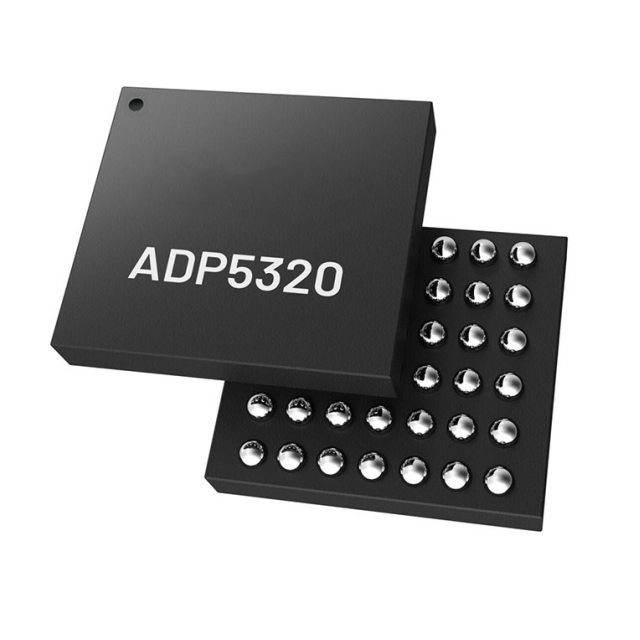

The ADP5320BCBZ-1-R7 highly integrated power management unit (PMU) combines nine digitally adjustable regulators, a fuel gauge, a 12-bit analogue-to-digital converter (ADC), 2 kb of one-time programmable (OTP) memory, and tamper-evident logic in a 42-ball, 2.880 mm × 2.980 mm WLCSP package. Regulators include 2× buck-boost, 1× buck regulator, 5× low dropout (LDO) regulators, and a low-input LDO to meet the demanding performance and board space requirements of wearable applications. The operating input voltage range of 1.8 V to 5.5 V enables use with wearable applications.

Features

● Wide input supply voltage range: 1.8 V to 5.5 V

● Low quiescent current: 5.1μA standby mode, including UVLO

● 16-bit Coulomb counter meter with integrated high end current sense resistor

● 12-bit ADC for monitoring battery voltage, output voltage and junction temperature

● Channel 1 and Channel 2:

● 150mA low power buck-boost regulator

● Selectable buck, boost or buck-boost operation

● Selectable hysteresis mode or pulse width modulation (PWM) mode

● Selectable PWM frequency: 50kHz to 225kHz

● 2 programmable GPIOs for clock synchronisation or fast stop switch inputs

● Channel 3:

● 150mA low power buck regulator

Applications

● Wearable medical applications

● Internet of Things (IoT) applications

● Disposable sensor devices

● Battery-powered devices
