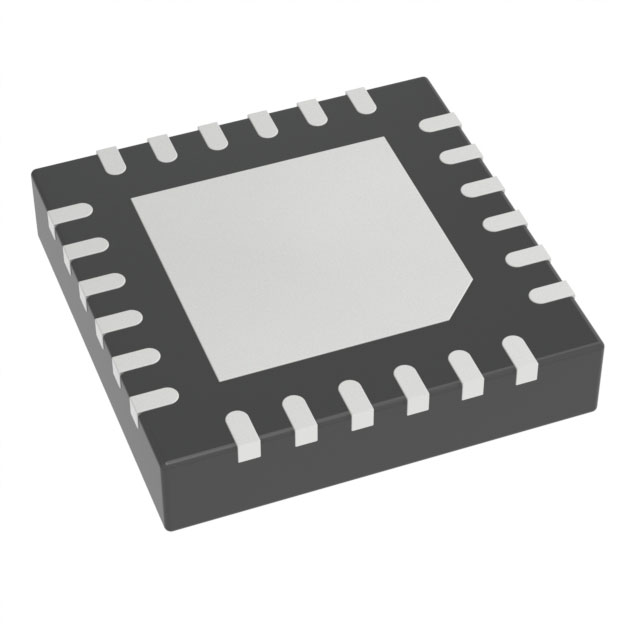

The ADN8833ACPZ is a monolithic H-bridge TEC driver with an integrated 1 A power MOSFET. It has a linear power stage with a linear driver (LDR) output and a pulse width modulated (PWM) power stage with a SW output. A current can be driven through the TEC to regulate the temperature of the laser diode or passive components connected to the TEC module. The control voltage applied to the CONT input is by a digital proportional, integral, derivative (PID) loop.

Features

● Patented high-efficiency single inductor structure

● Integrated low RDSON MOSFET for TEC driver

● TEC voltage and current operation monitoring

● No external sense resistor required

● Independent TEC heating and cooling current limit settings

● Programmable maximum TEC voltage

● 2 MHz PWM driver switching frequency

● External synchronisation

● Digital thermal control loop compatible

● 2.50 V reference output with 1 % accuracy

● Available in 25-pin, 2.5 mm × 2.5 mm WLCSP or

● Available in 24-lead, 4 mm × 4 mm LFCSPs

Applications

● TEC temperature control

● Optical modules

● Fibre-optic amplifiers

● Optical network systems

● Instruments requiring TEC temperature control
