Service Telephone:86-755-83294757
Trade Name:ADRF5721BCCZN
Data Manual:ADRF5721BCCZN.pdf
Brand:ADI
Particular Year:23+
Package:VFLGA-16
Delivery Date:New and Original
Stock: 2000pcs

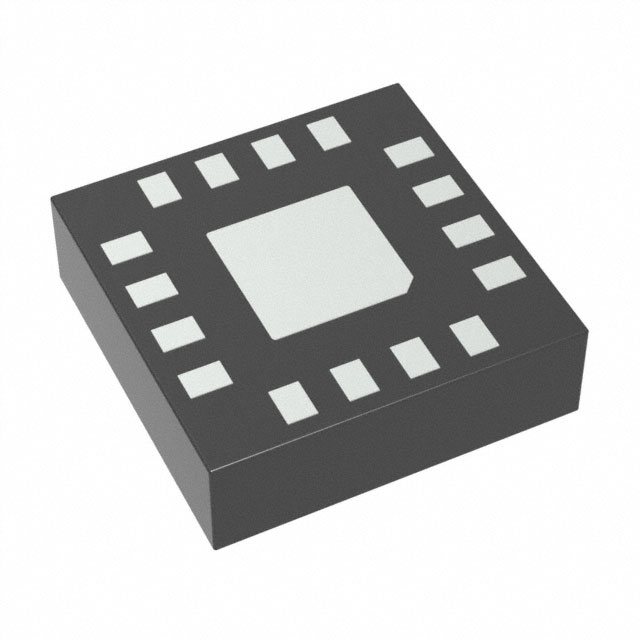

ADRF5721BCCZN - 2 dB LSB, 4-Bit, Silicon Digital Attenuator, 9 kHz to 40 GHz
Product Description
ADRF5721BCCZN is a silicon, 4-bit digital attenuator with a 30 dB attenuation control range in 2 dB steps. This device operates from 9 kHz to 40 GHz with better than 3.4 dB of insertion loss. The ATTIN port of the ADRF5721 has a radio frequency (RF) input power handling capability of 26 dBm average and 30 dBm peak for all states.
Product Features
Ultrawideband frequency range: 9 kHz to 40 GHz
Attenuation range: 2 dB steps to 30 dB
High input linearity
P0.1dB insertion loss state: 30 dBm
P0.1dB other attenuation states: 26 dBm
IP3: 50 dBm typical
High RF input power handling: 26 dBm average, 30 dBm peak
Tight distribution in relative phase
No low frequency switching spurs
SPI and parallel mode control, CMOS/LVTTL compatible
RF amplitude settling time (0.1 dB of final RF output): 8.5 μs
2.5 mm × 2.5 mm, 16-terminal LGA package
Applications
Industrial scanners
Test and instrumentation
Cellular infrastructure: 5G millimeter wave
Military radios, radars, electronic counter measures (ECMs)
Microwave radios and very small aperture terminals (VSATs)
