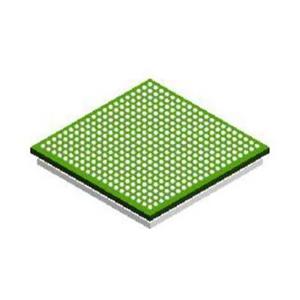

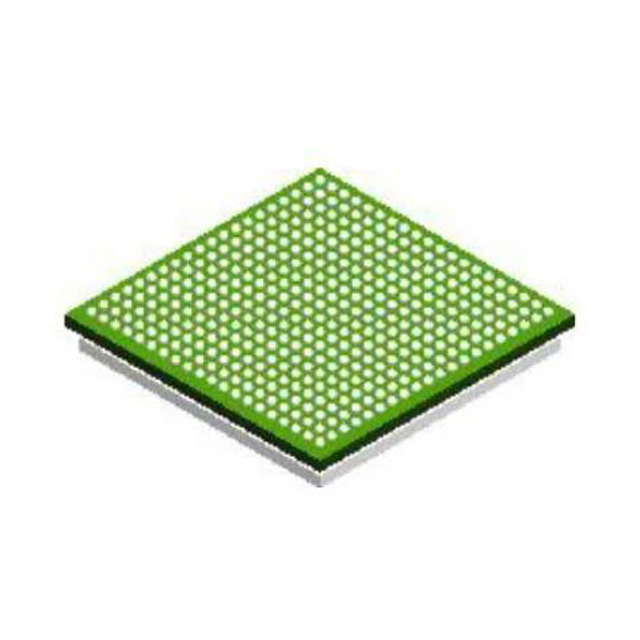

AFE8092HIABJ - Octal-Channel RF Transceiver with Feedback Paths

Product Description

AFE8092HIABJ is a high performance, wide bandwidth multi-channel transceiver, integrating eight RF sampling transmitter chains, eight RF sampling receiver chains and two separate RF front end for the auxiliary chains (feedback paths). The high dynamic range of the transmitter and receiver chains allows generating and receiving 3G, 4G and 5G signals for wireless base stations, while the wide bandwidth capability makes the AFE8092 devices suitable for multi-band 4G and 5G base stations.

Product Features

Octal RF sampling 12-GSPS transmit DACs

Octal RF sampling 4-GSPS receive ADCs

Maximum RF signal bandwidth:

– TX/FB: 800 MHz.

1200 MHz in 4 channels mode

– RX: 400 MHz

800 MHz in 4 channels mode

RF frequency range: up to 6GHz

Digital Step Attenuators (DSA):

– TX: 40-dB range, 1-dB analog and 0.125-dB digital steps

– RX/FB: 31/25-dB range, 1-dB step

Applications

Macro remote radio unit (RRU)

Active antenna system mMIMO (AAS)

Small cell base station

Distributed Antenna Systems (DAS)

Repeater
