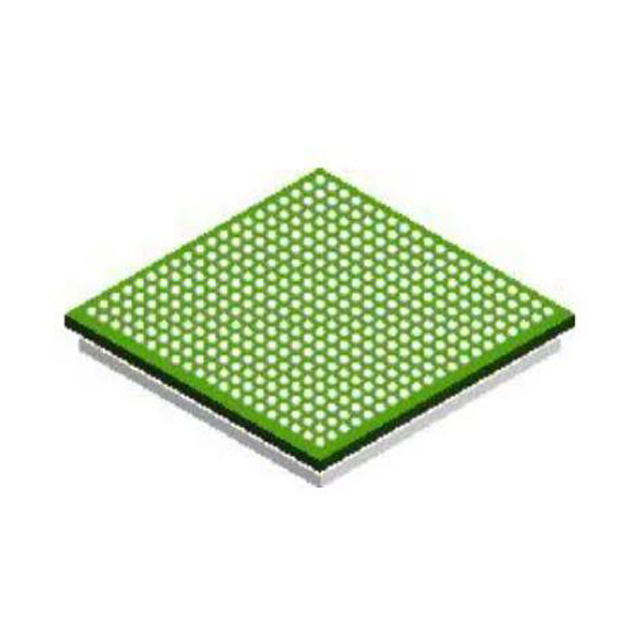

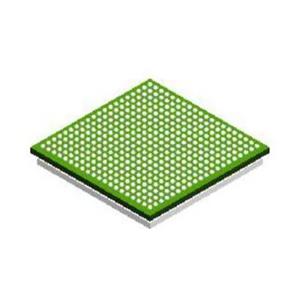

AFE7900IALK is a high performance, wide bandwidth multi-channel transceiver, integrating four RF sampling transmitter chains, four RF sampling receiver chains and two RF sampling feedback chains (six RF sampling ADCs total).

Features

Request full data sheet

Quad RF sampling 12-GSPS transmit DACs

Quad RF sampling 3-GSPS receive ADCs

Dual RF sampling 3-GSPS feedback (auxilliary RX) ADCs

Maximum RF signal bandwidth:

– 4TX or 2FB: 1200 MHz or 2TX: 2400 MHz

– RX): 1200 MHz (no FB), 600 MHz (with FB)

RF frequency range:

– TX: 5MHz - 7.4GHz

– RX/FB: 5MHz -7.4GHz

Digital step attenuators (DSA):

– TX: 40 dB range, 0.125-dB steps

– RX or FB: 25 dB range, 0.5-dB steps

Single or dual-band DUC or DDCs for TX and RX

16x NCOs per TX or RX and FB

Applications

Radar

Seeker front end

Defense radio

Tactical communications infrastructure

Wireless communications test
