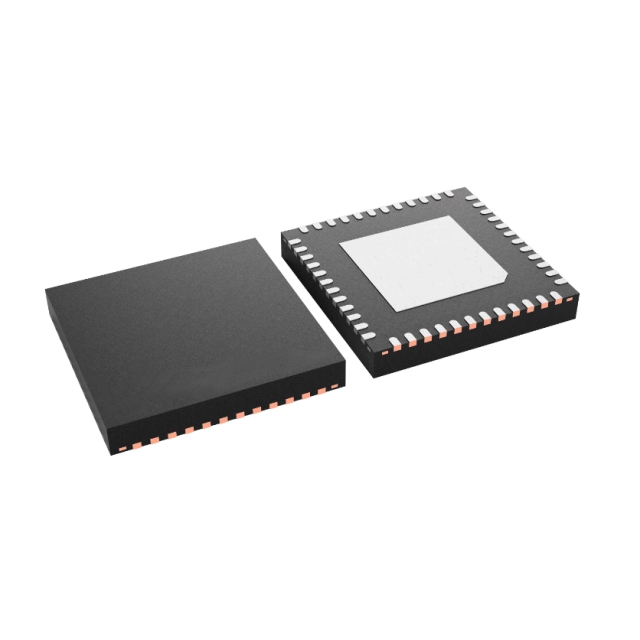

The MSPM0G1506SRGZR microcontrollers (MCUs) are part of MSP's highly integrated family of ultra-low-power 32-bit MCUs based on the enhanced Arm Cortex-M0+ 32-bit core platform and operating at up to 80 MHz. These low-cost MCUs offer high-performance analogue peripheral integration, support an operating temperature range of -40°C to 125°C, and operate from a supply voltage of 1.62 V to 3.6 V. These low-cost MCUs offer high-performance analogue peripheral integration, support an operating temperature range of -40°C to 125°C, and operate from a 1.62 V to 3.6 V supply voltage.

functionality

● Kernel

● Arm 32-bit Cortex-M0+ CPU with memory protection unit up to 80MHz

● Operating Characteristics

● Operating temperature range: -40°C to 125°C

● Wide supply voltage range: 1.62V to 3.6V

● Memory

● Up to 128KB of flash memory with error correction code (ECC)

● ECC protection, hardware parity, and up to 32KB of SRAM

● High-performance analogue peripherals

● Two 12-bit 4Msps synchronous sampling analogue-to-digital converters (ADCs) for a total of up to 17 external channels

● Hardware averaging with 14-bit rms resolution at 250ksps

● One 12-bit 1MSPS digital-to-analogue converter (DAC) with integrated output buffer

● Two zero-drift, zero-cross chopper operational amplifiers (OPAs)

● 0.5µV/°C chopper drift

● Up to 32x integrated programmable gain stage

Applications

● Motor control

● Household appliances

● Uninterruptible power supplies and inverters

● Electronic point-of-sale systems

● Medical and healthcare

● Test and measurement

● Factory automation and control

● Industrial transport

● Grid infrastructure

● Smart metering

● Communication modules

● Lighting
