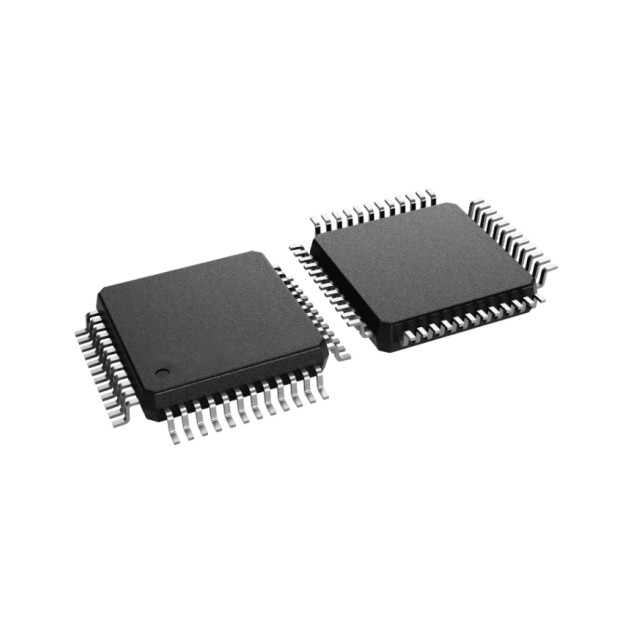

The F2800137PTR is a scalable, ultra-low latency device in the C2000™ family of real-time microcontrollers designed to improve the efficiency of power electronics. The real-time control subsystem is based on TI's 32-bit C28x DSP core, which delivers 120MHz of signal processing performance for floating-point or fixed-point code running from on-chip flash or SRAM. The C28x CPU is further enhanced by a trigonometric function accelerator (TMU), which speeds up commonly used algorithms critical to real-time control systems.

Product Attributes

Core Processor: C28x

Core Specification: 32-bit

Speed: 120 MHz

Connectivity: CANbus, FIFO, I2C, SCI, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

Number of inputs/outputs: 25

Program memory capacity 256KB (128K x 16)

Program memory type: Flash

RAM size: 18K x 16

Supply Voltage (Vcc/Vdd): 2.8V ~ 3.63V 2.8V ~ 3.63V

Data Converter: A/D 17x12b SAR; D/A 8x12b

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/case: 48-LQFP

Scope of delivery: 48-LQFP (7x7)

Applications

● Home Appliances

● Air conditioner outdoor units

● Washer and dryer

● For C2000 solutions, see Washer and Dryer section

● Robotic lawnmowers

● For C2000 solutions, see the Robotic lawnmowers section
