The F28M36P53C2ZWTQ is a multi-core system-on-chip microcontroller unit (MCU) with separate communication and real-time control subsystems. The device is the second family of Concerto products. The communication subsystem is based on an industry-standard 32-bit ARM Cortex-M3 CPU and features a variety of communication peripherals including Ethernet 1588, USB OTG with PHY, Controller Area Network (CAN), UART, SSI, I2C, and an external interface.

Product Attributes

Core Processor: C28x/ARM® Cortex®-M3

Core specification: 32-bit dual-core

Speed: 125MHz/150MHz

Connectivity: CANbus, EBI/EMI, Ethernet, I2C, IrDA, McBSP, SCI, SPI, SSI, UART/USART, USB OTG

Peripherals: Undervoltage Detect/Reset, DMA, POR, PWM, WDT

Number of I/O: 142

Program memory capacity: 512KB/512KB

Program memory type: Flash

RAM Size: 232KB

Voltage - Supply (Vcc/Vdd): 1.14V ~ 3.63V

Data Converter: A/D 24x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

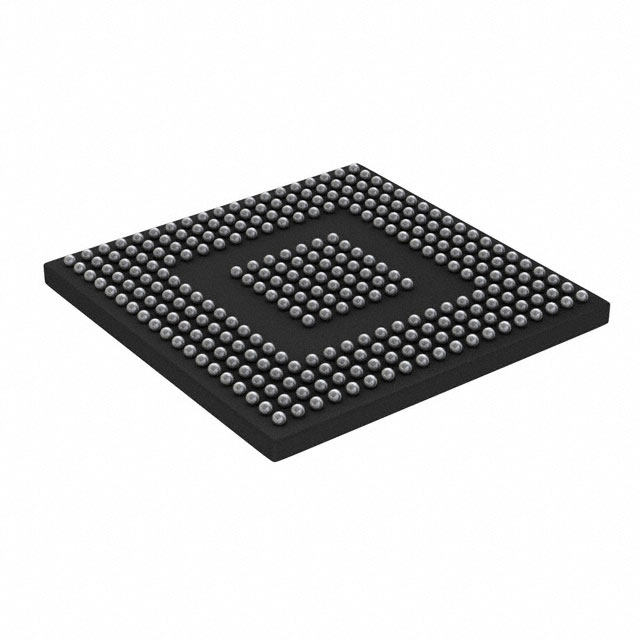

Package/Housing: 289-LFBGA

Supplier Device Package: 289-NFBGA (16x16)

Applications

● Servo drives

● High-end AC inverters

● Industrial uninterruptible power supplies (UPS)

● Solar inverters

● Electric vehicle/hybrid electric vehicle (EV/HEV) chargers

● Power line communication
