The F28M36H53B2ZWTQ real-time control subsystem is based on Texas Instruments' 32-bit C28x DSP cores, each of which delivers 200 MIPS of signal processing performance for floating-point or fixed-point code running from on-chip flash or SRAM. This is equivalent to 400 MHz of processing power for a Cortex®-M7-based device (the C28x DSP cores deliver twice the performance of the Cortex®-M7.) The C28x CPUs further enhance performance with the Triangulation Mathematics Unit (TMU) and VCRC (Verbatim Cyclic Redundancy Check) extended instruction set, speeding up commonly used algorithms that are critical to real-time control systems.

Product Attributes

Core Processor: C28x/ARM® Cortex®-M3

Core specification: 32-bit dual-core

Speed: 100MHz/150MHz

Connectivity CANbus, EBI/EMI, I2C, IrDA, McBSP, SCI, SPI, SSI, UART/USART

Peripherals Undervoltage detection/reset, DMA, POR, PWM, WDT

Number of I/O 142

Program memory capacity: 512KB/512KB

Program memory type Flash

RAM Size: 232KB

Voltage - Supply (Vcc/Vdd): 1.14V ~ 3.63V

Data Converter: A/D 24x12b

Oscillator Type Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type Surface Mount

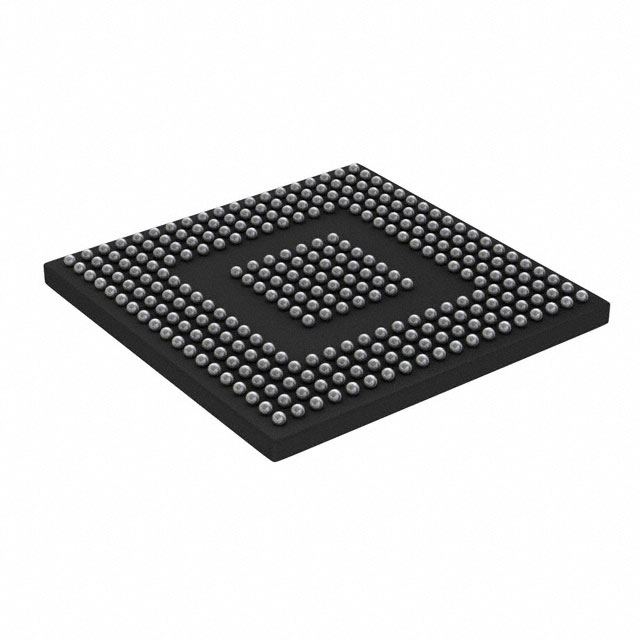

Package/Housing 289-LFBGA

Supplier Device Package: 289-NFBGA (16x16)

Applications

● Industrial Motor Drivers

● Motor control

● Traction inverter motor control

● HVAC motor control

● Mobile robot motor control

● Solar inverters

● Central inverters

● Micro inverters

● String inverters

● Digital Power

● Electric vehicles and transport

● Electric vehicle charging infrastructure

● Energy Storage Systems
