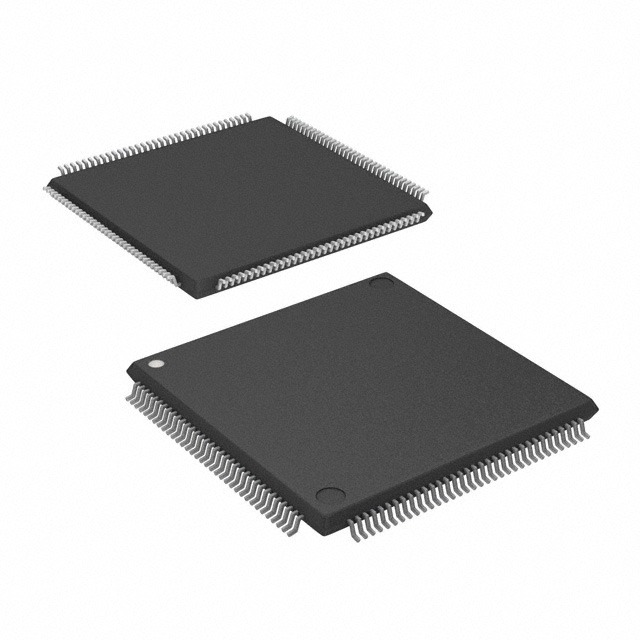

For picture reference, please see the specifications
< >

Commodity Model:TMS5703137DPGEQQ1

Trade Name:TMS5703137DPGEQQ1

Data Manual:TMS5703137DPGEQQ1.pdf

Brand:TI

Particular Year:23+

Package:LQFP-144

Delivery Date:New and Original

Stock: 1360pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
TMS5703137DPGEQQ1
Package
LQFP-144
Describe
16/32-Bit RISC Flash MCU, Arm Cortex-R4F, EMAC, FlexRay

Product Description

The TMS5703137DPGEQQ1 device is a high performance automotive grade family of microcontrollers for safety systems. The device integrates an ARM Cortex-R4F floating-point CPU that delivers a high efficiency of 1.66 DMIPS/MHz and has a configuration that can run at up to 180 MHz to deliver up to 298 DMIPS. The device supports the word-invariant large end-sequence [BE32] format.


Product Attributes

Product Category: ARM Microcontrollers - MCUs

Family: TMS570LS3137

Mounting Style: SMD/SMT

Package / Case: LQFP-144

Core: ARM Cortex R4F

Program memory size: 3 MB

Data bus width: 32 bit/16 bit

ADC resolution: 12 bit

Maximum clock frequency: 160 MHz

Number of inputs/outputs: 58 I/Os

Data RAM size: 256 kB

Supply voltage - min: 1.14 V

Supply voltage - max: 1.32 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Qualification: AEC-Q100

Analogue supply voltage: 3 V to 5.25 V

Data Ram Type: RAM

Data ROM size: 64 kB

Data Rom Type: EEPROM

I/O Voltage: 3.3 V

Interface type: CAN, I2C, SCI/LIN, SPI

Humidity Sensitivity: Yes

Number of ADC channels: 24 Channel

Product: MCUs

Programme memory type: Flash

Watchdog Timer: Watchdog Timer

Unit weight: 1.294 g


Application Areas

- Braking systems (ABS and ESC)

- Electric power steering

- Hybrid Electric Vehicle (HEV) and Electric Vehicle (EV) Reverser Systems

- Battery management systems

- Active driver assistance systems

- Space and Avionics

- Railway

- Off-road vehicles
