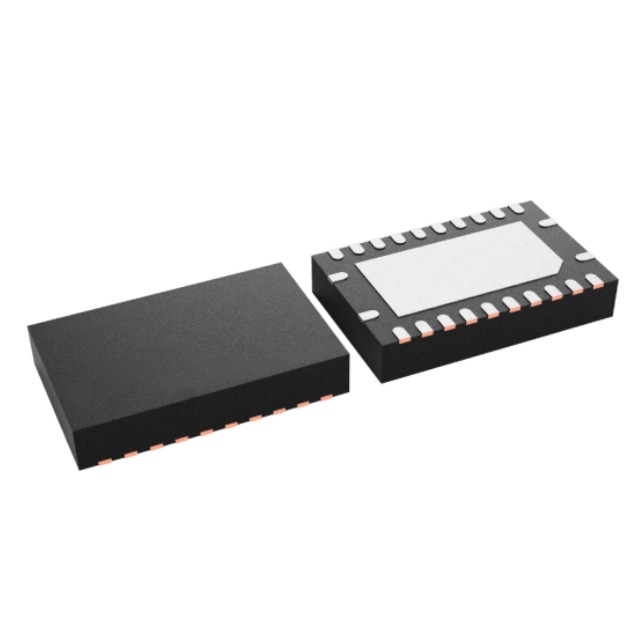

The LM5149RGYR is an 80V ultra-low IQ synchronous step-down DC/DC controller for high current single output applications. The controller uses a peak current mode control architecture for simple loop compensation, fast transient response, and excellent load and line regulation. The LM5149 can be set to operate in an interleaved bi-phase mode for accurate current sharing for high current applications. The device can operate at VINs as low as 3.5V and near 100% duty cycle if required.

Features

• Functional Safety-Capable

– Documentation available to aid functional safety system design

• Two integrated EMI mitigation mechanisms

– Active EMI Filter for enhanced EMI performance at lower frequencies

– Selectable dual random spread spectrum (DRSS) for enhanced EMI performance across low and high-frequency bands

– EMI reduced by an average of 25 dBµV

– Reduces the external differential-mode input filter size by 50% and lowers systems cost

– Optimized for CISPR 32 Class B requirements

• Versatile synchronous buck DC/DC controller

– Wide input voltage range of 3.5 V to 80 V

– 1% accurate, fixed 3.3 V, 5 V, 12 V, or adjustable output from 0.8 V to 55 V

– 150°C maximum junction temperature

– Shutdown mode current: 2.3 µA

– No-load sleep current: 9.5 µA

– Stackable up to two phases

– Advanced dropout with frequency foldback

• Switching frequency from 100 kHz to 2.2 MHz

– SYNC in and SYNC out capability

• Inherent protection features for robust design

– Internal hiccup-mode overcurrent protection

– ENABLE and PGOOD functions

– VCC, VDDA, and gate-drive UVLO protection

– Internal or external loop compensation

– Thermal shutdown protection with hysteresis

• Create a custom design using the LM5149 with WEBENCH® Power Designer

Applications

• Building automation

• Industrial transport

• Wireless infrastucture

• Test and measurement
