The DAC71416RHAR is a family of 16-channel buffered high-voltage output digital-to-analog converters (DACs) with pin compatibility and 14-bit resolution.The DACx1416 includes a low-drift 2.5V internal voltage reference, eliminating the need for an external precision reference in most applications. The devices are monotonic and provide high linearity of ±1LSB INL.

Features

• Performance

– Specified monotonic at 16-bit resolution

– INL: ±1 LSB maximum at 16-bit resolution

– TUE: ±0.1% of FSR maximum

• Integrated 2.5-V precision internal reference

– Initial accuracy: ±2.5 mV maximum

– Low drift: 5 ppm/°C typical

• Flexible output configuration

– Output range: ±2.5 V, ±5 V, ±10 V, ±20 V 0 to 5 V, 0 to 10 V, 0 to 20 V or 0 to 40 V

– Differential output mode

• High drive capability: ±25 mA with 1.5 V from supply rails

• Three dedicated A-B toggle pins for dither signal generation

• Analog temperature output

– Sensor gain of –4 mV/°C

• 50-MHz SPI-compatible serial interface

– 4-wire mode, 1.7-V to 5.5-V operation

– Daisy-chain operation

– CRC error check

• Temperature range: –40°C to +125°C

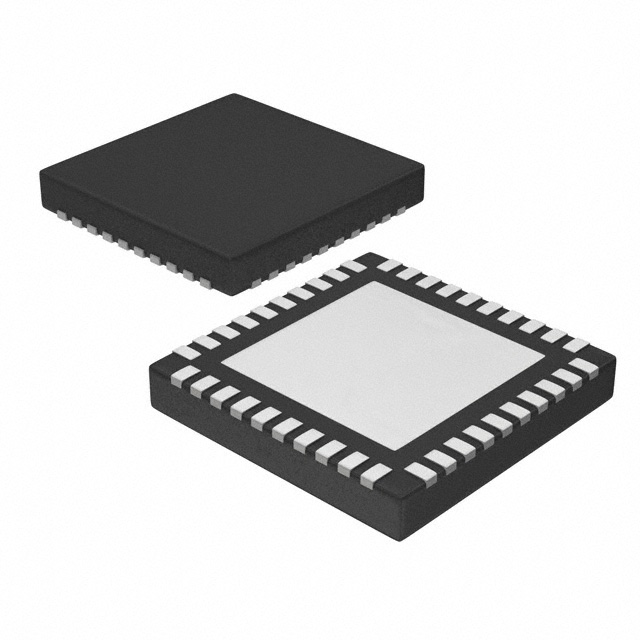

• Small package: 6 mm × 6 mm, 40-pin VQFN

Applications

• Inter-DC interconnect (long-haul, submarine)

• Inter-DC interconnect (metro)

• Optical module

• Semiconductor test

• Lab and field instrumentation

• Data acquisition (DAQ)
