The DAC7562SQDGSRQ1 devices are 12-bit low power, voltage output, dual channel digital-to-analogue converters (DACs). These devices include a 2.5V, 4ppm/°C internal reference that provides a full-scale output voltage range of 2.5V or 5V. The internal reference has an initial accuracy of ±5mV and is capable of supplying or sinking up to 20mA of current on the VREFIN/VREFOUT pins.

Features

- Ideal for Automotive Applications

- The following AEC-Q100-compliant results are available:

- Device Temperature Level 1: -40°C to 125°C ambient operating temperature range

- Device Human Body Model (HBM) Electrostatic Discharge (ESD) Classification Level 2

- Device Component Charging Mode (CDM) ESD Classification Level C4B

- Relative Accuracy:

- DAC756x (12-bit): 0.3 Least Significant Bit (LSB) Maximum Integral Nonlinearity (INL)

- DAC816x (14-bit): 1 LSB INL

- DAC856x (16-bit): 4 LSB INL

- Burr pulse: 0.1 nV-s

- Bidirectional reference: input or 2.5V output

- Outputs disabled by default

- ±5mV Initial Accuracy (Max)

- 4ppm/°C Temperature Drift (typical)

- 10ppm/°C Temperature Drift (Max)

- 20mA current draw capability

- Reset to zero or mid-range on power-up

- Low Power: 4mW (typical, 5V AVDD, which includes internal reference current)

- Wide supply range: 2.7V to 5.5V

- 50MHz Serial Peripheral Interface (SPI) with Schmitt Trigger Inputs

- LDAC and CLR functions

- Output buffers supporting rail-to-rail operation

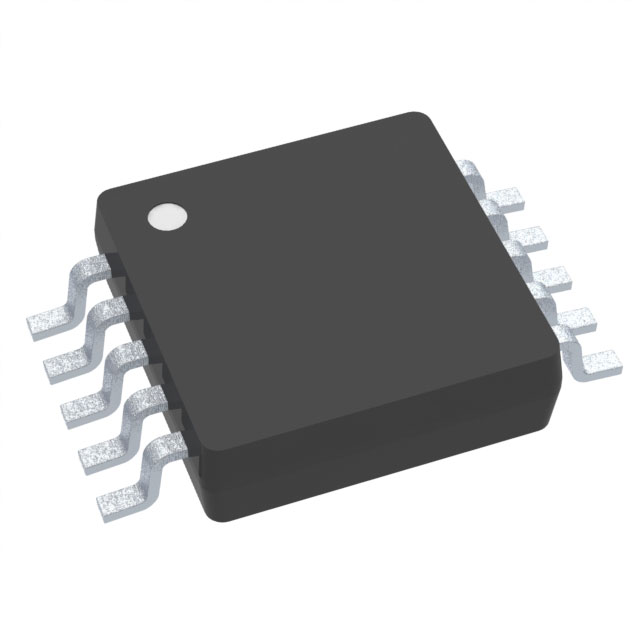

- Package: Very Thin Small Form Factor Package (VSSOP)-10

Applications

- Portable instrumentation

- Programmable logic controller (PLC) analogue output modules

- Closed-loop servo control

- Voltage controlled oscillator tuning

- Data Acquisition Systems

- Programmable Gain and Offset Adjustment
