The DAC43608RTER is an 8-bit low-power, voltage-output, eight-channel digital-to-analog converter (DAC).The DACx3608 is designed to be monotonic over a wide supply range of 1.8V to 5.5V.Using an external reference, the DACx3608 provides a full-scale output voltage range of 1.8V to 5.5V, while consuming 0.1mA of quiescent current per channel. The DACx3608 also includes user-programmable power-down registers on a per-channel basis. These registers help the DAC output buffers to power down to a 10K startup state and remain in that state until a power-up command is issued to these output buffers.

Features

- ±1LSB INL and DNL

- Wide operating range

- Supply voltage: 1.8V to 5.5V

- Temperature range: -40˚C to 125˚C

- I2C TM serial interface

- Standard, Fast and Fast+ modes

- 2.4V, VIH (VDD = 5.5V)

- Synchronised output update via LDAC pin

- Very low power consumption: 0.1mA/channel (1.8V)

- Low power start-up mode: outputs powered down to 10K state

- Miniature Package

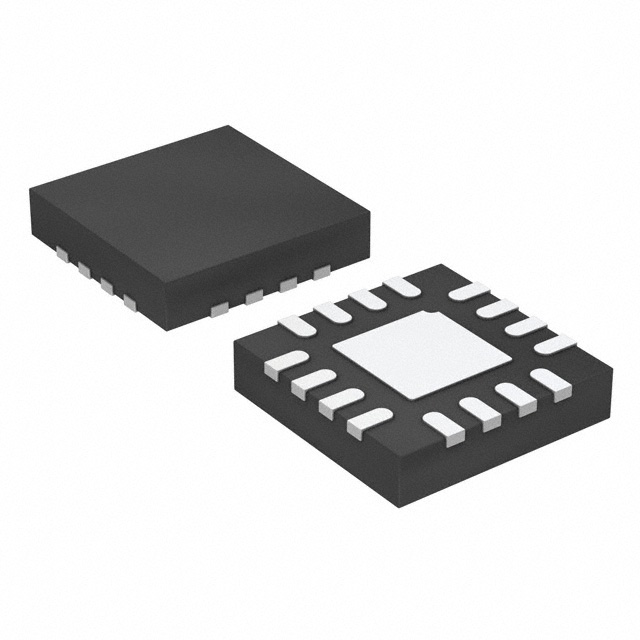

- 16-pin WQFN (3mm × 3mm)

Applications

- Programmable power supplies

- Programmable window comparator

- VCOM bias in display panels

- Laser driver in multifunction printers

- Auto-focus digital camera lenses

- ATM Machines, Money Counters, Bar Code Readers

- IP webcams, projectors
