TheDAC8728SRTQR is a low-power, octal, 16-bit digital-to-analog converter (DAC). With a 5V reference, the output can either be a bipolar ±15V voltage when operating from a dual ±15.5V (or higher) power supply, or a unipolar 0V to +30V voltage when operating from a +30.5V power supply. With a 5.5V reference, the output can either be a ±16.5V for a dual ±17V (or higher) power supply, or a unipolar 0V to +33V voltage when operating from a +33.5V (or higher) power supply. This DAC provides low-power operation, good linearity, and low glitch over the specified temperature range of –40°C to +105°C. This device is trimmed in manufacturing and has very low zero and full-scale error. In addition, user calibration can be performed to achieve ±1 LSB bipolar zero/full-scale error for a bipolar supply, or ±1 LSB zero-code/full-scale error for a unipolar supply over the entire signal chain. The output range can be offset by using the DAC Offset Register.

Features

Bipolar Output: ±3V, up to ±16.5V

Unipolar Output: 0V to +33V

16-Bit Resolution

Low Power: 13.5mW/Ch

Relative Accuracy: 4 LSB Max

Flexible User Calibration

Low Zero/Full-Scale Error

Before User Calibration: ±10 LSB Max

After User Calibration: ±1 LSB

Low Glitch: 4nV-s

Settling Time: 15µs

Channel Monitor Output

Programmable Gain: x4, x6

Programmable Offset

16-Bit Parallel Interface: 50MHz (Write Operation)

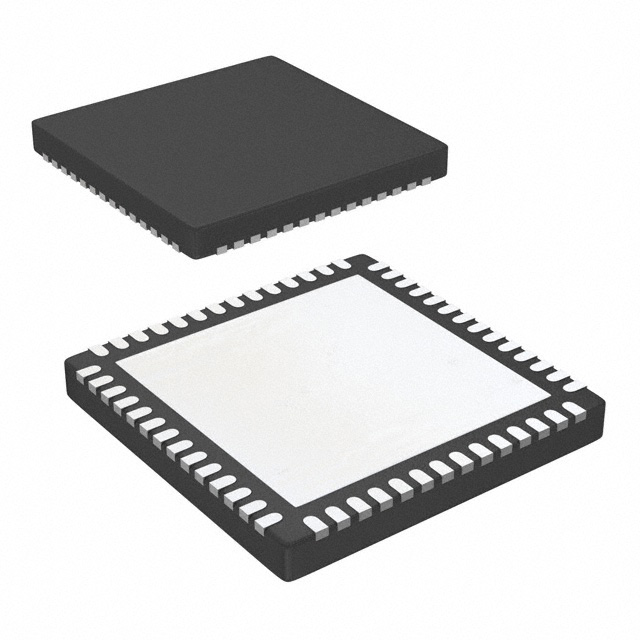

Packages: QFN-56 (8mm x 8mm)

Applications

Automatic Test Equipment

PLC and Industrial Process Control

Communications
