The ATSAME54P20A-CTU microcontroller (MCU) features a 32-bit Arm Cortex-M4 processor with floating-point unit (FPU) running at up to 120MHz, with up to 1MB dual-panel flash memory (with ECC) and up to 256KB SRAM (with ECC). Featuring a variety of connectivity interfaces, robust performance and robust hardware-level security, the family of MCUS also includes 10/100 Ethernet MACs and 2 CAN-FD port options for industrial automation, automotive applications and general-purpose applications that require wired connectivity.

Product Attributes:

Core processor: ARM® Cortex®-M4F

Kernel specification: 32-bit single-core

Speed: 120MHz

Connection capability: CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB

Peripheral: Undervoltage detection/reset, DMA, I²S, POR, PWM, WDT

Number of I/ OS: 99

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 256K x 8

Voltage - power supply (Vcc/Vdd) : 1.71V ~ 3.63V

Data converter: A/D 32x12b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

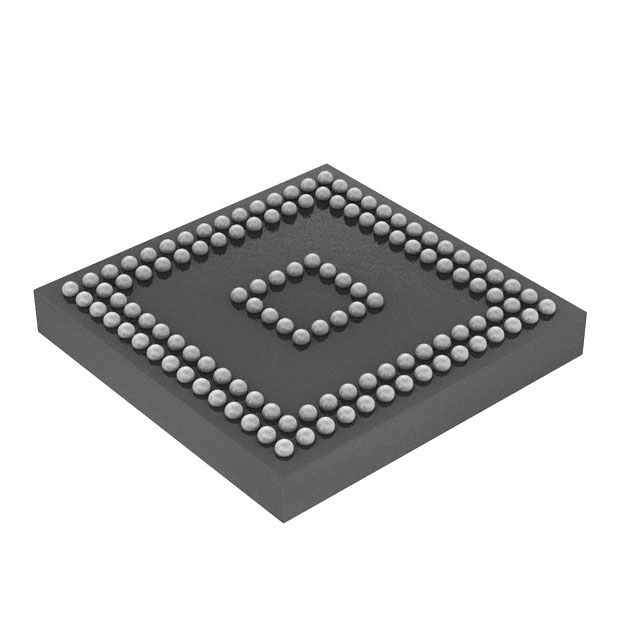

Package/case: 120-TFBGA

Supplier Package: 120-TFBGA (8x8)

Basic product number: ATSAME54
