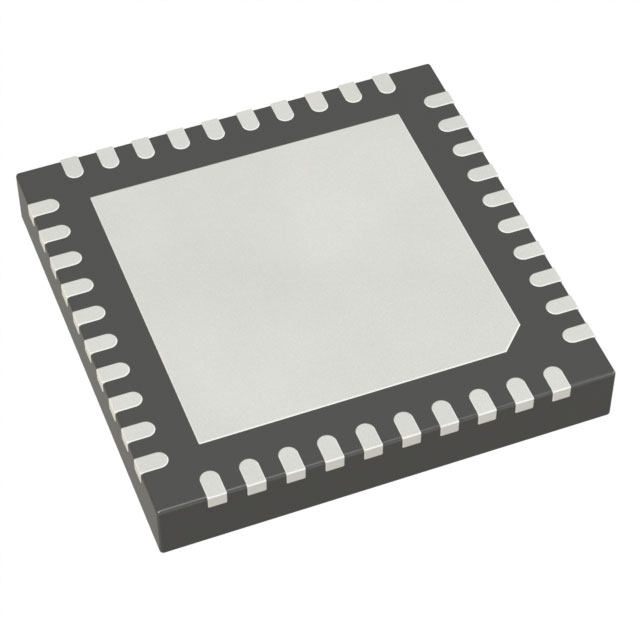

The PIC16F18076-I/MP 8-bit microcontroller features a complete set of digital and analogue peripherals to support cost-sensitive sensor and real-time control applications. Available in 28-pin to 44-pin packages with 28KB of program flash and speeds up to 32 MHz, it includes a 10-bit analogue-to-digital converter (ADCC) with computation, automatic capacitive voltage divider (CVD) technology for advanced capacitive touch sensing, averaging, filtering, over-sampling, and threshold comparisons, charge pumps, and an 8-bit digital-to-analogue converter (DAC) module.

Product Attributes

Core processor: PIC

Core specification: 8-bit

Speed: 32MHz

Connectivity: I²C, LINbus, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, POR, PWM, WDT

Number of I/O: 35

Program memory capacity: 28KB (28K x 8)

Programme memory type: Flash

EEPROM Size: 256 x 8

RAM Size: 2K x 8

Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V

Data Converter: A/D 39x10b SAR; D/A 1x8b

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Housing: 40-VFQFN Exposed Pad

Supplier Device Package: 40-QFN (5x5)

Applications

● Sensor networks

● Real-time control applications

● User interfaces

● Data protection

● Bootloader applications

● Industrial
