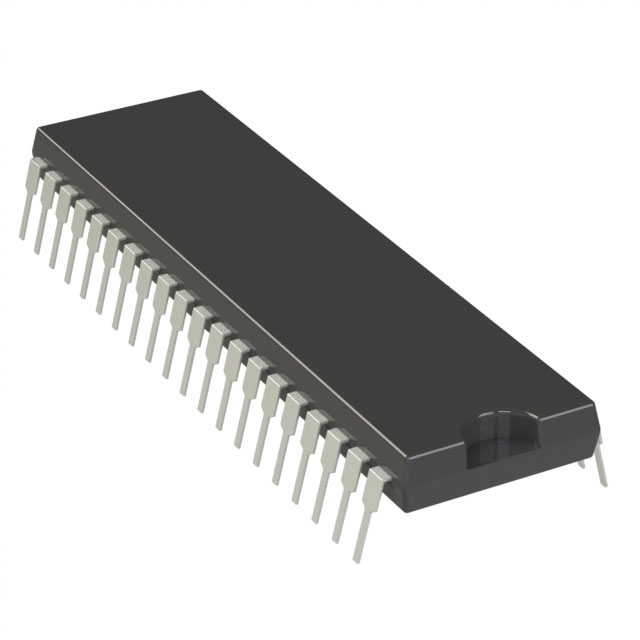

The ATMEGA4809-PF microcontrollers are part of the megaAVR® 0 family, which uses an AVR® processor with a hardware multiplier, operates up to 20 MHz, and offers up to 48 KB of Flash memory, up to 6 KB of SRAM, and 256 bytes of EEPROM in 28, 32, 40, or 48-pin packages. Featuring Microchip's latest technology, the family has a flexible, low-power architecture that includes an event system and SleepWalking, accurate analogue functionality, and advanced peripherals.

Product Attributes

Core Processor: AVR

Core Specification: 8-bit

Speed: 20MHz

Connectivity: I²C, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

Number of I/O: 34

Program memory capacity: 48KB (24K x 16)

Programme memory type: Flash

EEPROM Size: 256 x 8

RAM Size: 6K x 8

Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V

Data Converter: A/D 16x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Through Hole

Package/Housing: 40-DIP (0.600", 15.24mm)

Supplier Device Package: 40-PDIP
