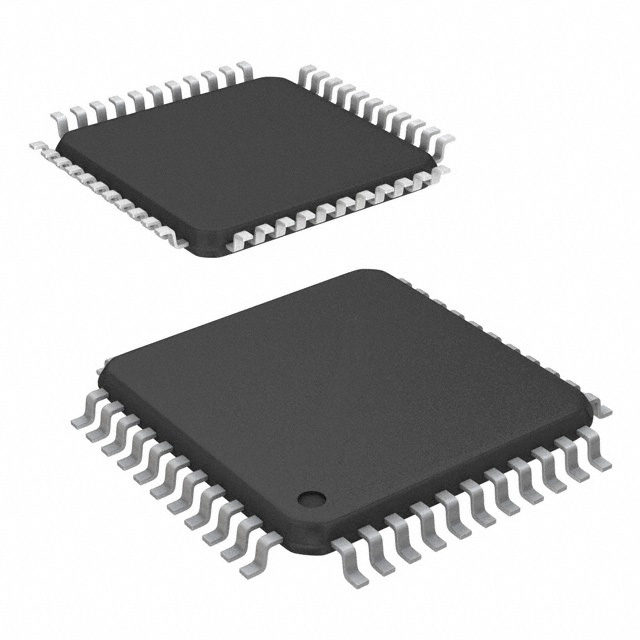

The AT89C51RB2T-RLTUM 8-bit MCU offers low power consumption and high performance with up to 32KB of flash programmable ROM and 512 bytes of RAM. The MCU features Microchip's high-density non-volatile memory technology. The device is compatible with the industry standard 80C51 and 80C52 instruction sets and pin assignments. The on-chip flash memory allows user programming of the programme memory via a conventional non-volatile memory programmer. This versatile 8-bit CPU with flash memory provides a flexible and cost-effective solution for many embedded control applications.

Product Attributes

Core Processor: 80C51

Core specification: 8-bit

Speed: 60MHz

Connectivity: SPI, UART/USART

Peripherals: POR, PWM, WDT

Number of I/O: 32

Program memory capacity: 16KB (16K x 8)

Program memory type: Flash

RAM Size: 1.25K x 8

Voltage - Supply (Vcc/Vdd): 4.5V ~ 5.5V

Oscillator Type: External

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Case: 44-LQFP

Supplier Device Package: 44-VQFP (10x10)
