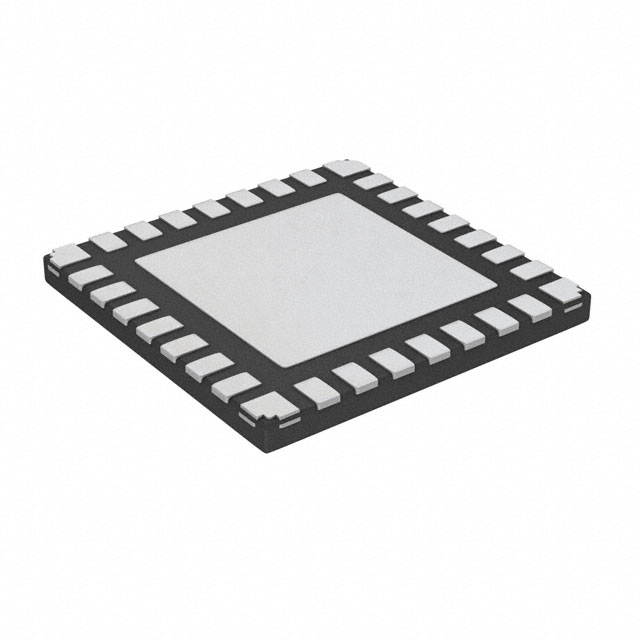

For picture reference, please see the specifications
< >

Commodity Model:DSPIC33FJ16GS502T-E/MX

Trade Name:DSPIC33FJ16GS502T-E/MX

Data Manual:DSPIC33FJ16GS502T-E/MX.pdf

Brand:Microchip

Particular Year:23+

Package:28-UQFN

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Microchip
Model
DSPIC33FJ16GS502T-E/MX
Package
28-UQFN
Describe
dsPIC Automotive, AEC-Q100, dsPIC™ 33F Microcontroller IC 16-bit 40 MIP 16KB (16K x 8)

Product Description

The DSPIC33FJ16GS502T-E/MX Digital Signal Controller (DSC) offers the performance of a DSP with the simplicity of an MCU. The cores are designed to perform digital filter algorithms, high-speed precision digital control loops, and digital audio and voice processing. Devices with motor control peripherals can be used to design high-performance precision motor control systems.


Product Features

Core processor: dsPIC

Core specification 16-bit

Speed: 40 MIP

Connectivity: I²C, IrDA, LINbus, SPI, UART/USART

Peripherals: undervoltage detection/reset, POR, PWM, WDT

Number of inputs/outputs: 21

Program memory capacity 16KB (16K x 8)

Program memory type: Flash

RAM size: 2K x 8

Supply Voltage (Vcc/Vdd): 3 V ~ 3.6 V

Data Converter: A/D 16x10b; D/A 4x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/case: 28-UQFN with open area

Delivery incl.: 28-UQFN (6x6)


Applications

● AC to DC converters

● DC to DC converters

● Power Factor Correction (PFC)

● Uninterruptible Power Supplies (UPS)

● Inverters

● Embedded power controllers

● Circuit breakers, arc fault detection

● Digital Lighting
