The R7FA2E1A92DBV RA2E1 MCU is an entry-level single-chip microcontroller based on the 48MHz Arm® Cortex-M23 core, with 128KB of code flash memory and 16kB of SRAM. Using optimized process and low-power process technology, the product is the industry's best-in-class ultra-low-power microcontroller, ideal for battery-powered and space-constrained applications, as well as other system applications requiring high performance and low power consumption.

Product specification

Core processor: ARM® Cortex®-M23

Kernel specification: 32-bit single-core

Speed: 48MHz

Connectivity: I²C, SmartCard, SPI, UART/USART

Peripheral: AES, DMA, LVD, POR, PWM, Temp Sensor, TRNG, WDT

Number of I/ OS: 27

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash

EEPROM capacity: 4K x 8

RAM size: 16K x 8

Voltage - power supply (Vcc/Vdd) : 1.6V ~ 5.5V

Data converter: A/D 8x12b SAR

Oscillator type: external, internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

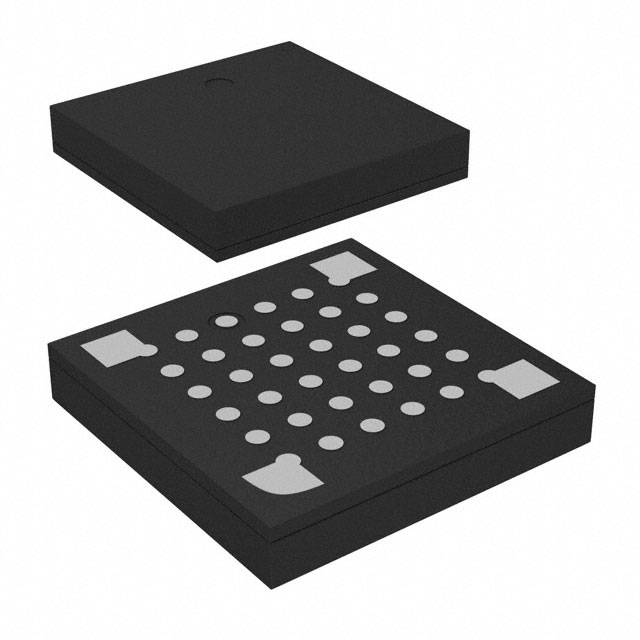

Package/case: 36-WFLGA

Supplier Package: 36-WFLGA (4x4)
