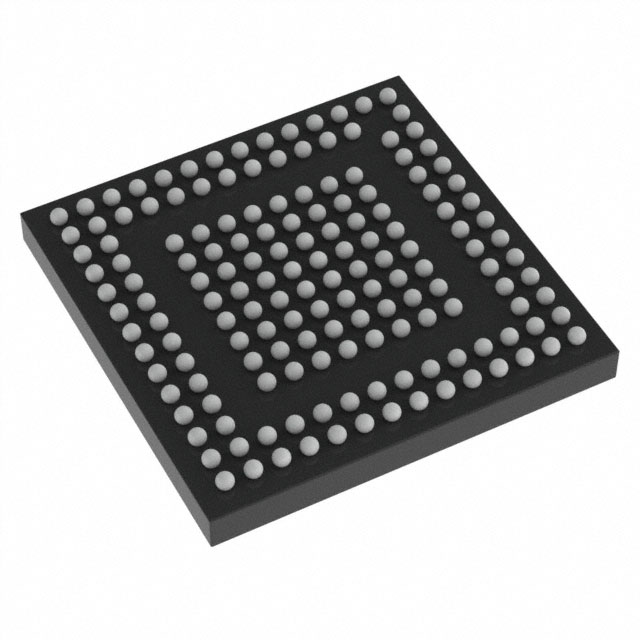

The SJA1105RELY is a 5-port store-and-forward architecture, with each port individually configurable for 10/100 Mbit/s when operating as an MII/RMII, or 10/100/1000 Mbit/s when operating as an RGMII or SGMII, with independent I/O voltage domains: for MII/RMII/RGMII, selectable Separate I/O voltage domains: for MII/RMII/RGMII, selectable 1.8/2.5/3.3 V operating voltage; for RGMII, selectable 1.8/2.5/3.3 V operating voltage. Small footprint: LFBGA159 (12 mm × 12 mm) package, automotive class 2 ambient operating temperature: -40 °C to +105 °C, and automotive certification to AEC-Q100 Rev-H.

Product Attributes

Protocol: Ethernet

Function: Switch

Interface: SPI

Standard: IEEE 802.3

Voltage - Supply: 1.65V ~ 3.6V

Current - Supply: 3.5mA

Operating Temperature: -40°C ~ 125°C (TJ)

Package/Housing: 159-LFBGA

Supplier Device Package: 159-LFBGA (12x12)

Grade: Automotive Grade

Qualification: AEC-Q100

Applications

● Industrial control

● Surround Vision

● Automotive Electronics

● AVB

● V2X communication

● Automotive Vision Systems

● Automotive Audio Solutions

● Electronic Cockpit

● Gateway

● Networked Radio

● Driver Monitoring System (DMS) and Occupant Monitoring System (OMS)
