The HMC1114PM5ETR is a gallium nitride (GaN) wideband power amplifier that delivers outputs greater than 10 W (up to 42 dBm) in the transient bandwidth range of 2.7 GHz to 3.8 GHz at an input power (PIN) of 18 dBm. Power added efficiency (PAE) up to 55%. At small signal levels, the typical gain flatness is less than 1 dB.

The HMC1114PM5E is suitable for pulse or continuous wave (CW) applications such as wireless infrastructure, radar, common mobile RF and general-purpose amplification technologies.

Features

High and low signal gain: 34.5dB (typical)

High output power: 42 dBm when PIN = 18 dBm (typical value)

55% for high PAE: PIN = 18 dBm (typical value)

Frequency range: 2.7 GHz to 3.8 GHz

Power supply voltage: VDD = 28V when static current is 150 mA

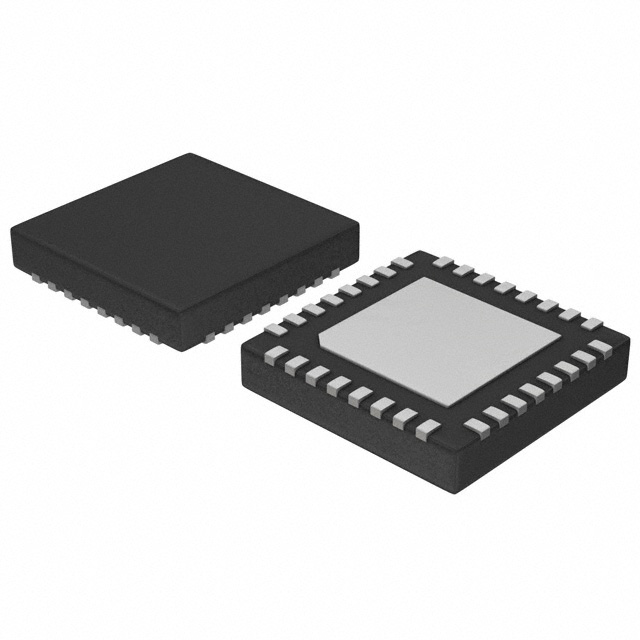

5 mm x 5 mm, 32 pin LFCSP_CAV package

Applications

Suitable for long battery powered operation of public mobile RF

Power amplifier stage for wireless infrastructure

Test and measurement equipment

Commercial and military radar

Universal transmitter applications
