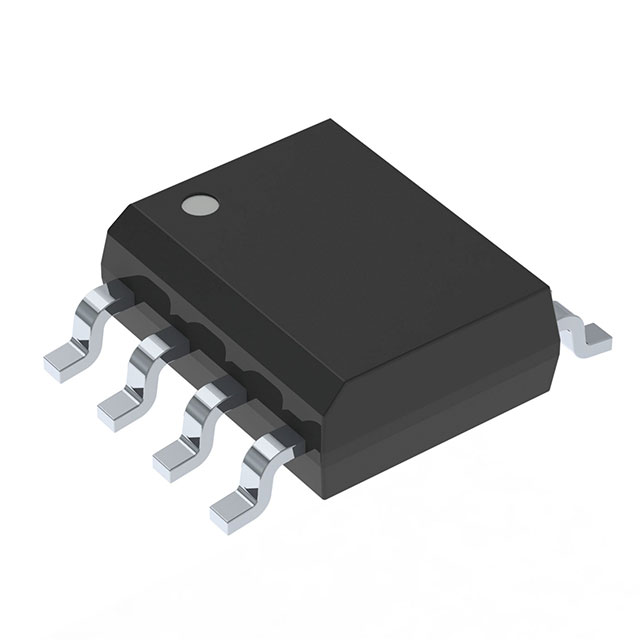

The TLE9250XSJ high-speed CAN transceiver is a high-speed CAN transceiver for use inside high-speed CAN networks for automotive and industrial applications. The transceiver meets the requirements of ISO 11898-2 (2016) Physical Layer Specification and SAE standards J1939 and J2284. is available in a PG-DSO-8 package and a small leadless PG-TSON-8 package. Both packages are RoHS compliant and halogen free. In addition, the PG-TSON-8 package supports the solder joint requirements of automatic optical inspection (AOI).

Product Characteristics

Type: Transceiver Transceiver

Protocol CANbus

Number of drivers/receivers 1/1

Receiver hysteresis: 100 mV

Data Rate: 5 Mbps 5 Mbps

Voltage - Supply 4.5V ~ 5.5V

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type Surface Mount

Package/Shell: 8-SOIC (0.154 inch, 3.90 mm wide)

Supplier Device Package PG-DSO-8

Applications

● Engine Control Units (ECUs)

● Electric power steering

● Transmission Control Unit (TCU)

● Chassis control modules
