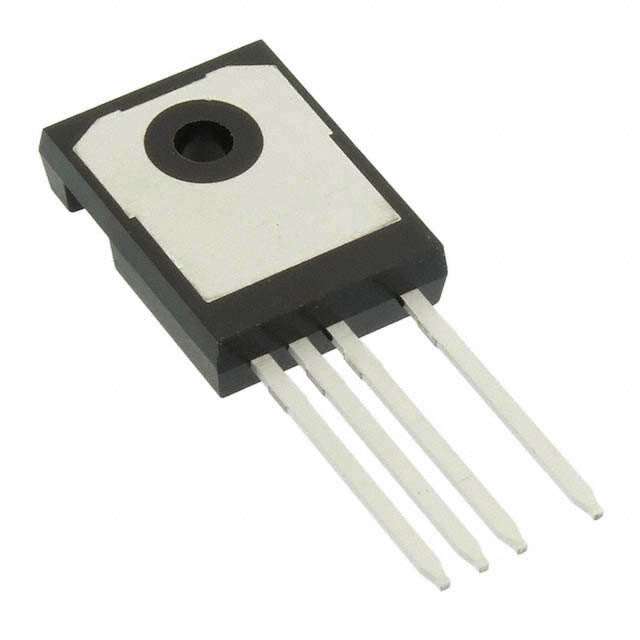

IKZ75N65ES5 Hard-switching 650 V, 75 A high speed TRENCHSTOP™ 5 S5 IGBT in TO-247-4 package with an extra Kelvin emitter pin. The TO-247 4pin provides ultra-low inductance to the gate-emitter control loop and brings TRENCHSTOP™ 5 IGBT to the next level of best in class switching performance.

Features

High speed S5 technology offering

High speed smooth switching device for hard & soft switching

Very Low Vcesat, 1.42V at nominal current

Plug and play replacement of previous generation IGBTs

650V breakdown voltage

Low gate charge QG

IGBT copacked with full rated RAPID 1 fast antiparallel diode

Maximum junction temperature 175°C

Qualified according to JEDEC for target applications

Pb-free lead plating; RoHS compliant

Complete product spectrum and PSpice Models:

Applications

Industrial UPS

Industrial SMPS

Energy Storage

Charger

Welding
