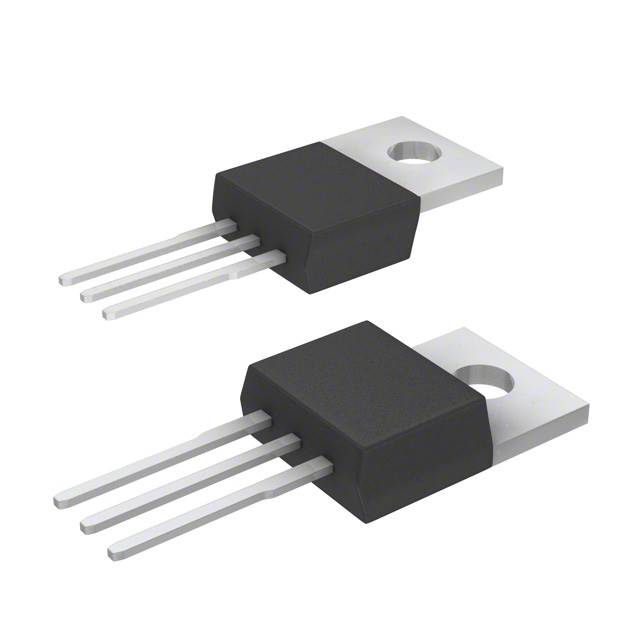

IGP20N65F5XKSA1 is 650V IGBT high speed switching series fifth generation. New TRENCHSTOP™5 IGBT technology redefines “Best-in-class” IGBT by providing unmatched performance in terms of efficiency for hard switching applications.

Summary of Features

650V breakthrough voltage

Compared to Infineon’s Best-in-class HighSpeed 3 family

Factor 2.5 lower Q g

Factor 2 reduction in switching losses

200mV reduction in V CE(sat)

Low C OES/E OSS

Mild positive temperature coefficient V CE(sat)

Temperature stability of V f

Benefits

Best-in-class efficiency, resulting in lower junction and case temperature leading to higher device reliability

50V increase in the bus voltage possible without compromising reliability

Higher power density design

Applications

Solar converters

Uninterruptible power supplies

Welding converters

Mid to high range switching frequency converters
