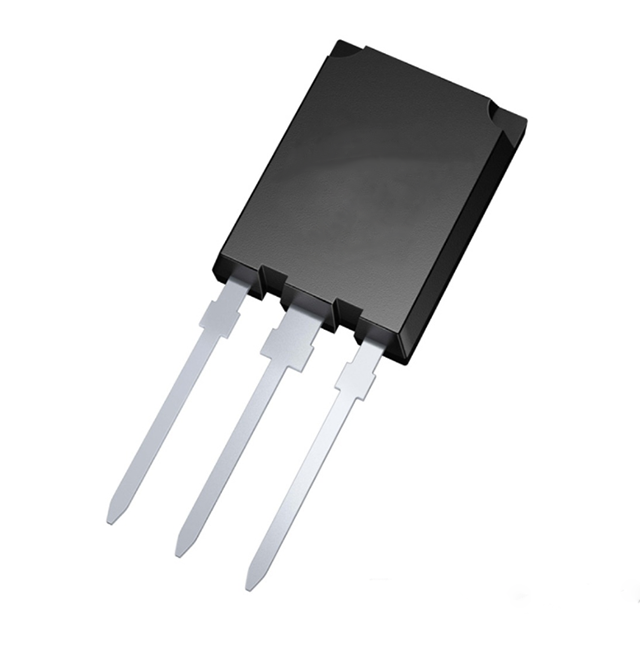

IGQ100N120S7XKSA1 is hard-switching 1200 V, 100 A single TRENCHSTOP™ IGBT7 S7 discrete in TO-247 package which offers low VCEsat to achieve very low conduction losses in target applications.

Summary of Features

Very low Vcesat

Good controllability

Full rated free wheeling diode with improved softness

Robustness against harsh condition and HV-H3TRB

8 µs short circuit time

Very tight parameter distribution

Maximum operating Tj of 175 °C

Benefits

Lowest losses on IGBT, high system efficiency for higher power output

Higher power density without heatsink redesign

Fast and easy replacement of predecessor T2 portfolio

High device reliability in harsh opereating condition

Ease to design to meet EMI requirement

Applications

Motor control and drives

Uninterruptible power supplies (UPS)

Industrial power supplies

Solar
