Service Telephone:86-755-83294757
Trade Name:S25FL064LABMFI010
Data Manual:S25FL064LABMFI010.pdf
Brand:INFINEON
Particular Year:23+

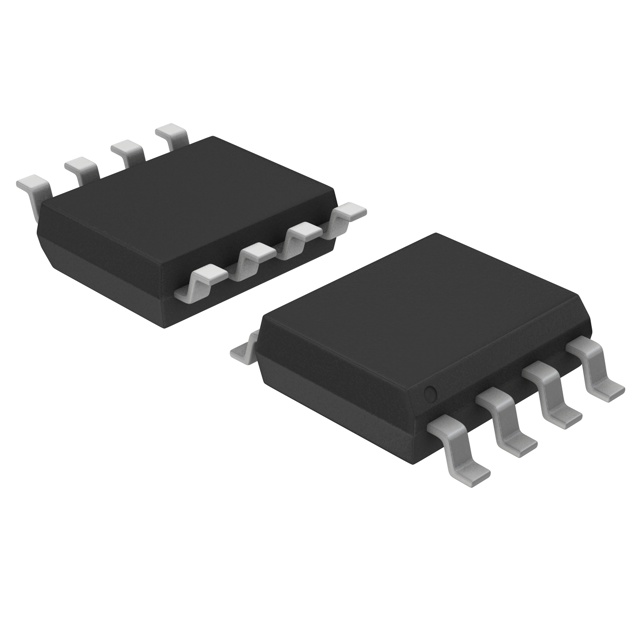

Package:SOIC-8
Delivery Date:New and Original
Stock: 1000pcs
The S25FL064LABMFI010 FL-L series connects to a host system via a serial peripheral interface (SPI). Traditional SPI unit serial inputs and outputs (single I/O or SIO) are supported, as well as optional two-bit (dual I/O or DIO) and four-bit wide Quad I/O (QIO) and Quad Peripheral Interface (QPI) commands. In addition, the QIO and QPI have a double data rate (DDR) read command that transfers addresses and reads data on both edges of the clock.
Product Specifications
Product Category: NOR Flash
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Series: S25FL064L
Memory capacity: 64 Mbit
Supply voltage - min: 2.7 V
Supply voltage - max: 3.6 V
Active read current (max): 30 mA
Interface type: QPI, SPI
Maximum clock frequency: 108 MHz
Organisation: 8 M x 8
Data bus width: 8 bit
Timing type: Synchronous
Minimum operating temperature: - 40 C
Maximum operating temperature: + 85 C
Architecture: Floating Gate
Memory type: NOR
Humidity Sensitivity: Yes
Product Type: NOR Flash
Speed: 54 MHz, 108 MHz
Factory Package Quantity: 2100
Sub Category: Memory & Data Storage
Unit weight: 460.500 mg
Model
Brand
Package
Quantity
Describe
INFINEON
BGA-24
3000
FLASH - NOR Memory IC 256Mb SPI - Four I/O 133 MHz 24-BGA (8x6)
