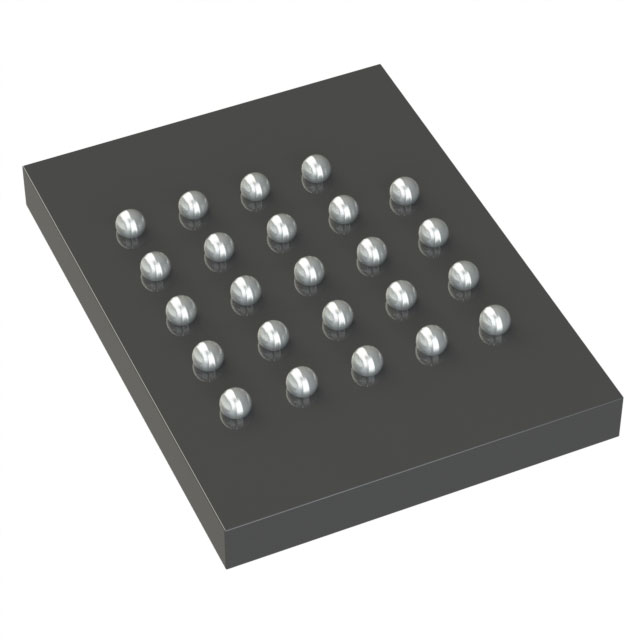

The S25FL064LABBHV020 is a 3.0 V, single-supply flash memory device using a 65 nm floating gate process. Benefits of the family include greater bandwidth through double data rate (DDR) commands, neat 4 KB sector selection, enhanced data protection schemes, and a higher temperature range.

Features

Multi-I/O serial peripheral interface (SPI)

Clock polarity and phase modes 0 and 3

Double Data Rate (DDR) option

Quad Peripheral Interface (QPI) option

Extended addressing: 24-bit or 32-bit address options

Serial command subset and footprint compatible with the S25FL-A, S25FL1-K, S25FL-P, S25FL-S and S25FS-S SPI families

Multi-I/O command subset and footprint compatible with the S25FL-P, S25FL-S, and S25FS-S SPI families

Read

Commands: Normal, Fast, Dual I/O, Quad I/O, Dual O, Quad O, DDR Quad I/O

Modes: Burst Loopback, Continuous (XIP), QPI

Serial Flash Discoverable Parameters (SFDP) for configuration information

Programming architecture

256-byte page programming buffer 3.0V FL-L flash memory

Program pause and resume

Erase Architecture

Unified 4KB sector erase

Unified 32KB half-block erase

Unified 64KB block erase

Chip Erase

Erase pause and resume

100,000 programme erase cycles

20 years of data retention

Typical Technology

65nm floating gate technology

Safety Features

Status and configuration register protection

Four 256-byte security zones, all external to the main flash array

Traditional block protection: block ranges

Individual and regional protection

Individual block locking: volatile individual sectors/blocks

Pointer regions: non-volatile sector/block ranges

Power lockout, password or permanent protection for security areas 2 and 3 and pointer area

Single supply voltage with CMOS I/O: 2.7V to 3.6V

Temperature range: Industrial Plus (-40°C to +105°C)
