S25FL064LABNFV043 The FL-L NOR Flash memory family uses 65nm process lithography and floating gate technology.The FL-L family connects to the host system via the Serial Peripheral Interface (SPI).The FL-L family supports the traditional SPI units (single I/O or SIO) as well as the optional 2-bit (dual I/O or DIO). In addition, it supports 4-bit wide Quad I/O (QIO) and Quad Peripheral Interface (QPI) commands.

Features

- Multiple input/output serial peripheral interface (SPI)

- Clock polarity and phase modes 0 and 3

- Double Data Rate (DDR) option

- Quad Peripheral Interface (QPI) option

- Extended addressing: 24-bit or 32-bit address options

- Serial command subset and footprint compatible with S25FL-A, S25FL1-K, S25FL-P, S25FL-S, and S25FS-S SPI families

- Multi-I/O command subset and footprint compatible with S25FL-P, S25FL-S, and S25FS-S SPI series

- Read

- Commands: Normal, Fast, Dual I/O, Quad I/O, Dual O, Quad O, DDR Quad I/O

- Mode: Burst Envelope, Continuous (XIP), QPI

- Serial Flash Discoverable Parameters (SFDP) for configuration information

- Programming Architecture

- 256-byte page programming buffer

- Program pause and resume

- Erase Architecture

- Unified 4 KB sector erase

- Uniform 32 KB Half Block Erase

- Uniform 64 KB Block Erase

- Chip Erase

- Erase Pause and Resume

- Minimum 100,000 programme erase cycles

- Minimum 20-year data retention period

S25FL064LABNFV043 Product Attributes:

Series: FL-L

Memory type: Non-volatile

Memory format: Flash

Technology: FLASH - NOR

Memory capacity: 64Mbit

Memory Organisation: 8M x 8

Memory interface: SPI - Quad I/O, QPI

Clock Frequency: 108 MHz

Voltage - Supply: 2.7V ~ 3.6V

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

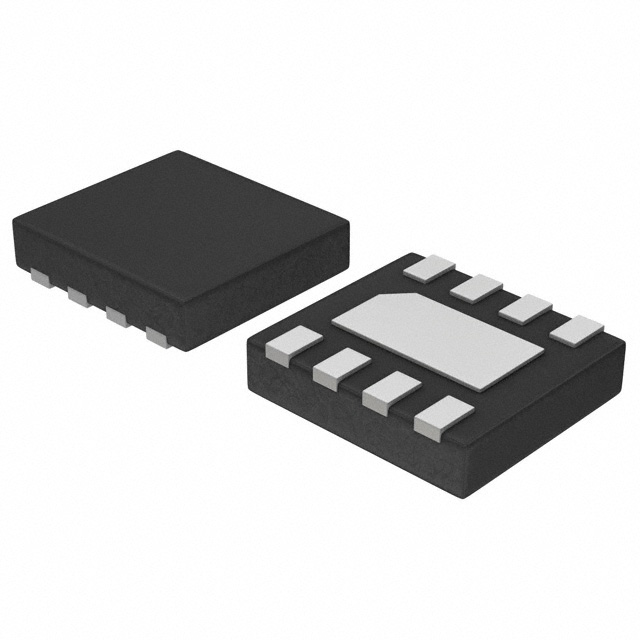

Package/Shell: 8-UDFN Exposed Pad

Supplier Device Package: 8-USON (4x4)
