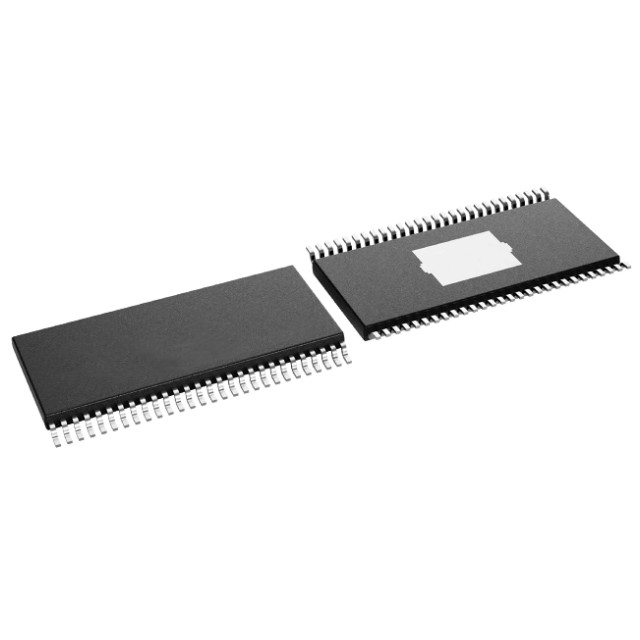

TAS5828MDADR is a stereo high-performance, closed-loop Class-D with integrated audio processor with up to 192-kHz architecture.

Features

Flexible audio I/O:

Supports 32, 44.1, 48, 88.2, 96, 192-kHz sample rates

I2S, LJ, RJ, TDM, SDOUT for audio monitoring, sub-channel or echo cancellation

Supports 3-wire digital audio interface (no MCLK required)

High-efficiency Class-D modulation

> 90% power efficiency, 90 mΩ RDSon

Supports multiple output configurations

2 × 50 W, 2.0 Mode (4-Ω, 23 V, THD+N=1%)

2 × 40 W, 2.0 Mode (6-Ω, 24 V, THD+N=1%)

1 × 100 W, 1.0 Mode (2-Ω, 23 V, THD+N=1%)

1 × 80 W, 1.0 Mode (3-Ω, 24 V, THD+N=1%)

Excellent audio performance:

THD+N ≤ 0.03% at 1 W, 1 kHz, PVDD = 12 V

SNR ≥ 110 dB (A-weighted), ICN ≤ 40 µVRMS

Flexible processing features

3-Band advanced DRC +2 BQs + AGL + 2 BQs

12 BQs per channel, level meter

96-kHz, 192-kHz processor sampling

Mixer, volume, dynamic EQ, output cross bar

PVDD sensing and hybrid-pro algorithm audio signal tracking

Flexible power supply configurations

PVDD: 4.5 V to 26.4 V

DVDD and I/O: 1.8 V or 3.3 V

Excellent integrated self-protection:

Over-current error (OCE)

Cycle-by-cycle current limit

Over-temperature warning (OTW)

Over-temperature error (OTE)

Under and over-voltage lock-out (UVLO/OVLO)

PVDD voltage drop detection

Easy system integration

I2C Software or Hardware Control Mode

Fewer passive required compared with open-loop devices

Applications

Battery-powered speaker

Wireless, bluetooth speakers

Soundbars and subwoofers

Heat or efficiency senstive audio system
