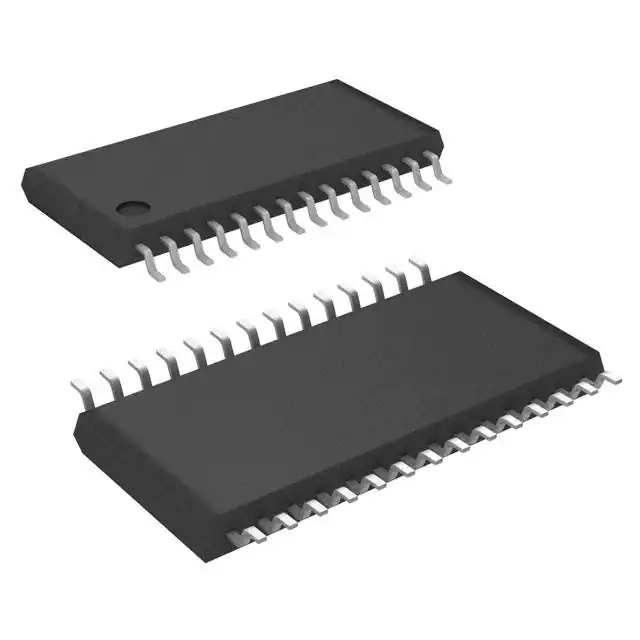

Microcontroller Chip S9S08SL16F1MTLR TSSOP28 8Bit EEPROM MCU IC 40MHz IC Chip

Product Description

S9S08SL16F1MTLR is 8-bit microcontrollers with embedded Follower LIN Interface Controller (SLIC) and EEPROM help to increase LIN follower performance and reduce development time. S9S08SL16F1MTLR 8-bit EL and SL families of microcontrollers (MCUs) are designed for LIN follower and general market applications. The EL family is positioned as higher end, offering higher memory and more peripherals, while the SL family is intended for more cost-sensitive applications.

Specification

Core Processor:S08

Core Size:8-Bit

Speed:40MHz

Connectivity:I²C, LINbus, SCI, SPI

Peripherals:LVD, POR, PWM, WDT

Number of I/O:22

Program Memory Size:16KB (16K x 8)

Program Memory Type:FLASH

EEPROM Size:256 x 8

RAM Size:512 x 8

Voltage - Supply (Vcc/Vdd):2.7V ~ 5.5V

Data Converters:A/D 16x10b

Oscillator Type:External

Operating Temperature:-40°C ~ 125°C (TA)

Features

Up to 20 MHz internal bus (40 MHz HCS08 Core) frequency offering 2.7 to 5.5V across temperature range of -40°C to 85°C

Up to 32K flash read/program/erase over full operating voltage and temperature

Up to 512 Bytes EEPROM

Two very low-power stop modes

Reduced power wait mode

Very low-power real-time interrupt for use in run, wait, and stop

16 interrupt pins with selectable polarity

22 general purpose input/output (GPIO)s

Low-voltage detection with reset or interrupt; selectable trip points

Flash block protection

EEPROM block protect
