The R5F51115AGFL is a 32-bit microcontroller produced by (Renesas), featuring a small-capacity ROM and built-in USB 2.0. It belongs to the RX111 series and adopts a 32-bit RX CPU core with a main frequency of 32 MHz. During operation, it can achieve 50 DMIPS (instructions per second). Additionally, It also supports CISC instruction sets, featuring a 5-level pipeline architecture and a variable instruction length design.

Technical specifications

Core processor: RX

Kernel specification: 32-bit

Speed: 32MHz

Connection capabilities: I2C, SCI, SPI, USB

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O count: 30

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 16K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 3.6V

Data converter: A/D 10x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

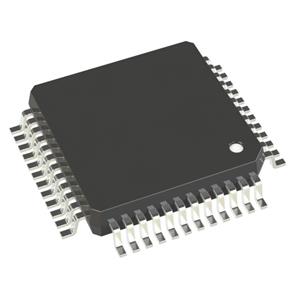

Package: 48-LFQFP (7x7)

Application field

The R5F51115AGFL microcontroller chip is widely used in industrial control, consumer electronics and other fields. The specific selection should be matched in combination with actual needs (such as the number of I/O, expansion interfaces, etc.).
