The IS1870SF-202 Bluetooth ® Low Power SoC includes a 2.4GHz transceiver, power management unit (PMU), Microchip Bluetooth Low Power software stack, and RF power amplifier. The IS1870 Bluetooth Low Power SoC offers simple integration and programming that not only reduces development time and delivers superior Bluetooth low power solutions in a low-cost system, but also interoperates with Apple® iOS and Android™ operating systems for a wide range of application support. The SoC is optimized to maintain low-power wireless connectivity in a small-size package designed for wearable applications.

specification

Type: TxRx + MCU

Rf Series/Standard: Bluetooth

Protocol: Bluetooth v5.0

Modulation: -

Frequency: 2.402GHz ~ 2.48GHz

Data rate (Max.) : 921.6kbps

Power - Output: 0dBm

Sensitivity: -90dBm

Storage capacity: 256kB flash memory, 32kB ROM, 24kB SRAM

Serial interface: ADC, I²C, PWM, SPI, UART

GPIO: 31

Voltage - Power supply: 1.9V ~ 3.6V

Current - Reception: 10mA

Current - Transmission: 10mA

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

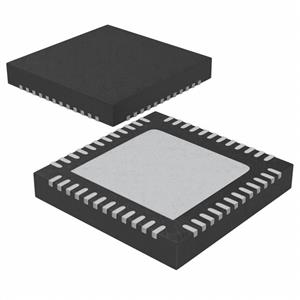

Package/housing: 48-VFQFN bare pad

Supplier Package: 48-QFN (6x6)

Basic product number: IS1870SF
