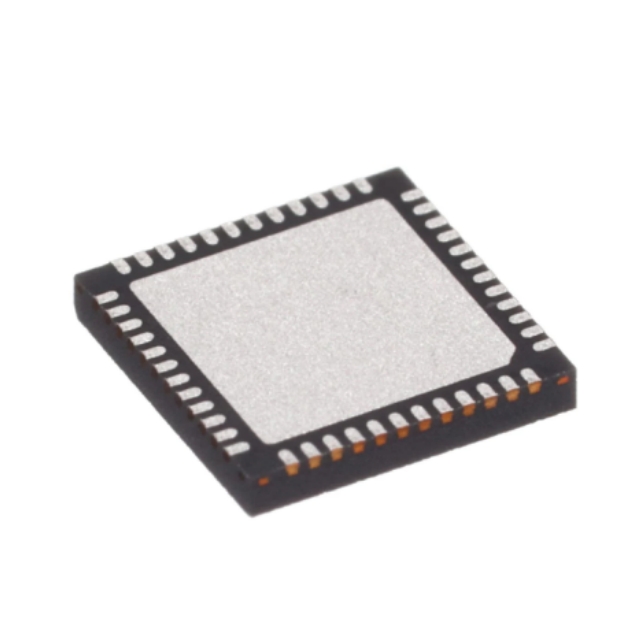

The R7FA6T3BB3CNE features an Arm® Cortex®-M33 core with up to 200 MHz CPU performance, 256 KB of code flash, 4 KB of data flash, and 40 KB of SRAM, and offers a wide range of peripherals including USB full speed, CANFD, I3C, and ADC.

Product Attributes

Core Processor: ARM® Cortex®-M33

Core specification: 32-bit

Speed: 200MHz

Connectivity: CANbus, EBI/EMI, I²C, I³C, IrDA, MMC/SD, SCI, SPI, UART/USART, USB

Peripherals: DMA, LVD, POR, PWM, WDT

Number of I/O: 29

Program memory capacity: 256KB (256K x 8)

Program memory type: Flash

EEPROM Size: 4K x 8

RAM Size: 40K x 8

Voltage - Supply (Vcc/Vdd): 2.7V ~ 3.6V

Data Converter: A/D 8x12b SAR; D/A 2x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/Housing: 48-WFQFN Exposed Pad

Supplier Device Package: 48-HWQFN (7x7)
