The MIC2133YML dual phase synchronous step-down controller is a constant on-time controller with a unique adaptive on-time control architecture. The device supports HyperLight Load and phase cutting functions. The MIC2133 operates in the input supply voltage range from 8V to 75V. The output voltage can be adjusted to 0.6V, and the accuracy at the FBS pin is guaranteed to be ±1%. The device has a programmable switching frequency range of 100 KHZ to 1MHz.

Product attribute

Output type: transistor driver

Function: Depressurize

Output configuration: positive

Topology: depressurize

Output number: 1

Output phase: 2

Voltage - power supply (Vcc/Vdd) : 8V ~ 75V

Frequency-switch: 100kHz ~ 1MHz

Duty cycle (Max) : 85% (standard)

Synchronous rectifier: Yes

Clock synchronization: None

Serial interface: -

Control characteristics: current limiting, no-load time control, Enable, frequency control, on-control, phase control, good power supply, soft start, tracking

Operating temperature: -40°C ~ 125°C (TJ)

Mounting type: Surface mount type

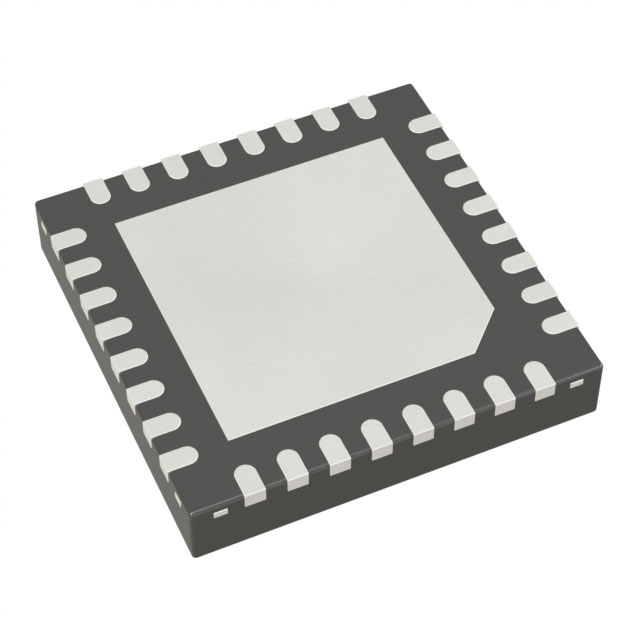

Package/housing: 32-VFQFN bare pad

Supplier Package: 32-VQFN (5x5)

Basic product number: MIC2133
