The automotive ATSAMA5D29-CN based on the Arm® Cortex-A5 CPU is a high-performance, low-power embedded microprocessor (MPU) operating at frequencies up to 500MHz. The AEC-Q100 Level 2 compliant SAMA5D29 MPU supports a wide range of memory such as DDR2, DDR3L, LPDDR2, LPDDR3, QSPI and E.MC flash. These devices integrate powerful connectivity peripherals and user interface applications, including two ISO-compliant CAN-FD interfaces.

Product attribute

Core processor: ARM® Cortex®-A5

Number of cores/bus width: 1 core, 32 bits

Speed: 500MHz

Coprocessor /DSP: Multimedia; NEON™ MPE

RAM controller: DDR2, DDR3, DDR3L, LPDDR, LPDDR2, LPDDR3

Graphics acceleration: Yes

Display and interface controller: LCD, touch screen

Ethernet: 10/100Mbps (1)

SATA: -

USB: USB (3) + HSIC (3)

Voltage - I/O: 1.2V, 1.35V, 1.5V, 1.8V, 3.3V

Operating temperature: -40°C ~ 105°C (TA)

Security Features: AES, ARM TZ, Boot Security, Encryption, Secure JTAG, Secure Memory, Secure RTC, SHA, TDES, TRNG

Mounting type: Surface mount type

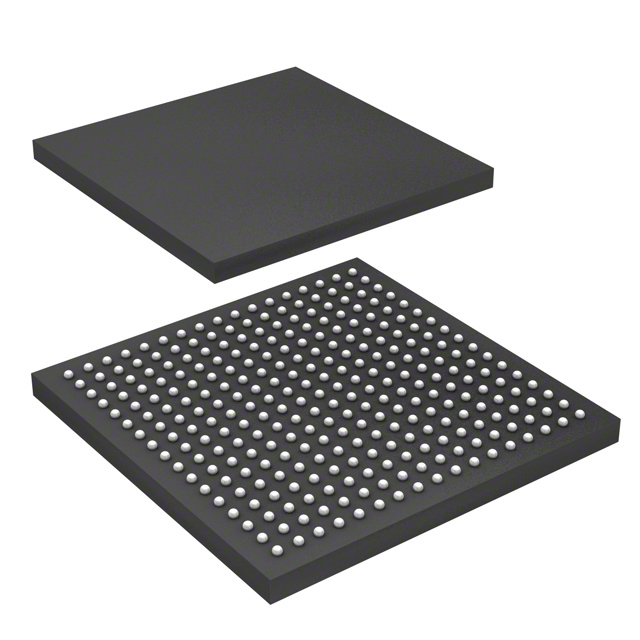

Package/housing: 289-LFBGA

Supplier Package: 289-LFBGA (14x14)

Additional interfaces: EBI/EMI, I²C, I²S, MMC/SD/SDIO, QSPI, SMC, SPI, UART, USART
