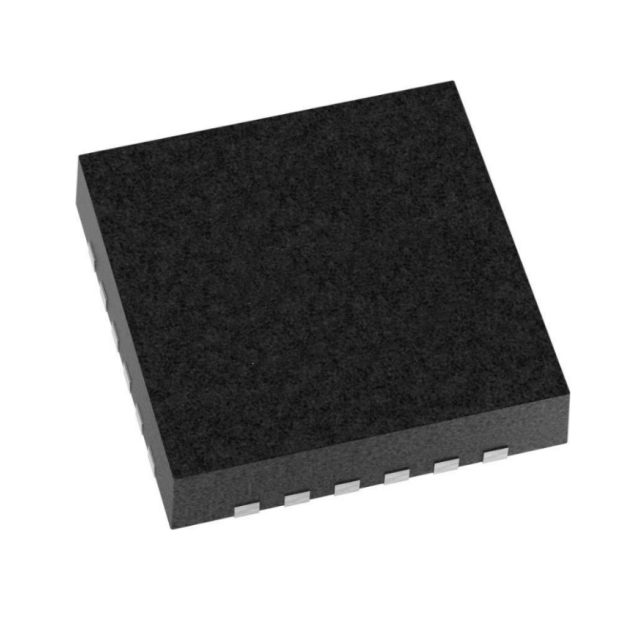

The LAN8671C1T-E/U3B Ethernet PHY transceivers are compact, low-power, single-port 10BASE-T1S Ethernet physical layer transceivers. Designed to the IEEE Std 802.3cg-2019™ specification, these devices provide 10Mbit/s half-duplex transmit and receive functionality over a single balanced-pair medium, such as unshielded twisted pair (UTP) cable. Designed for applications requiring extended temperature range (-40°C to +125°C). The device also meets industrial EMC and EMI requirements. A single power supply and simple analogue front-end simplify its integration into small footprint applications.

Product Properties

Type: Transceiver

Protocol: Ethernet

Number of Drivers/Receivers: 1/1

Duplex: Full, Half

Receiver hysteresis: 230 mV

Data Rate: 10 Mbps

Voltage - Supply: 3.135V ~ 3.465V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount, Wettable Sides

Package/Shell: 24-VFQFN Exposed Pad

Supplier Device Package: 24-VQFN (4x4)

Applications

● Sensor/actuator networks operating at high bandwidths

● Microphone networks providing audio streaming for beamforming and hands-free microphones

● Backplane communications

● Industrial control cabinets and machine controls

● Building automation
